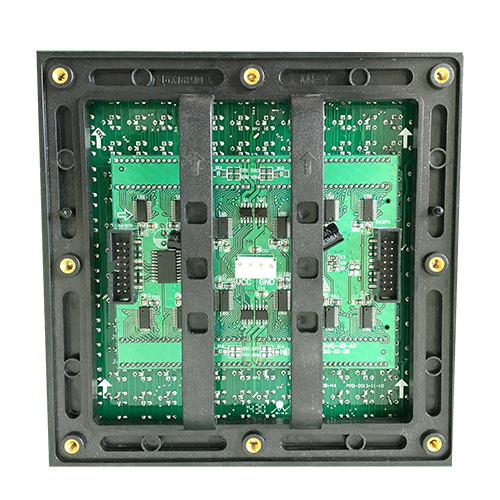

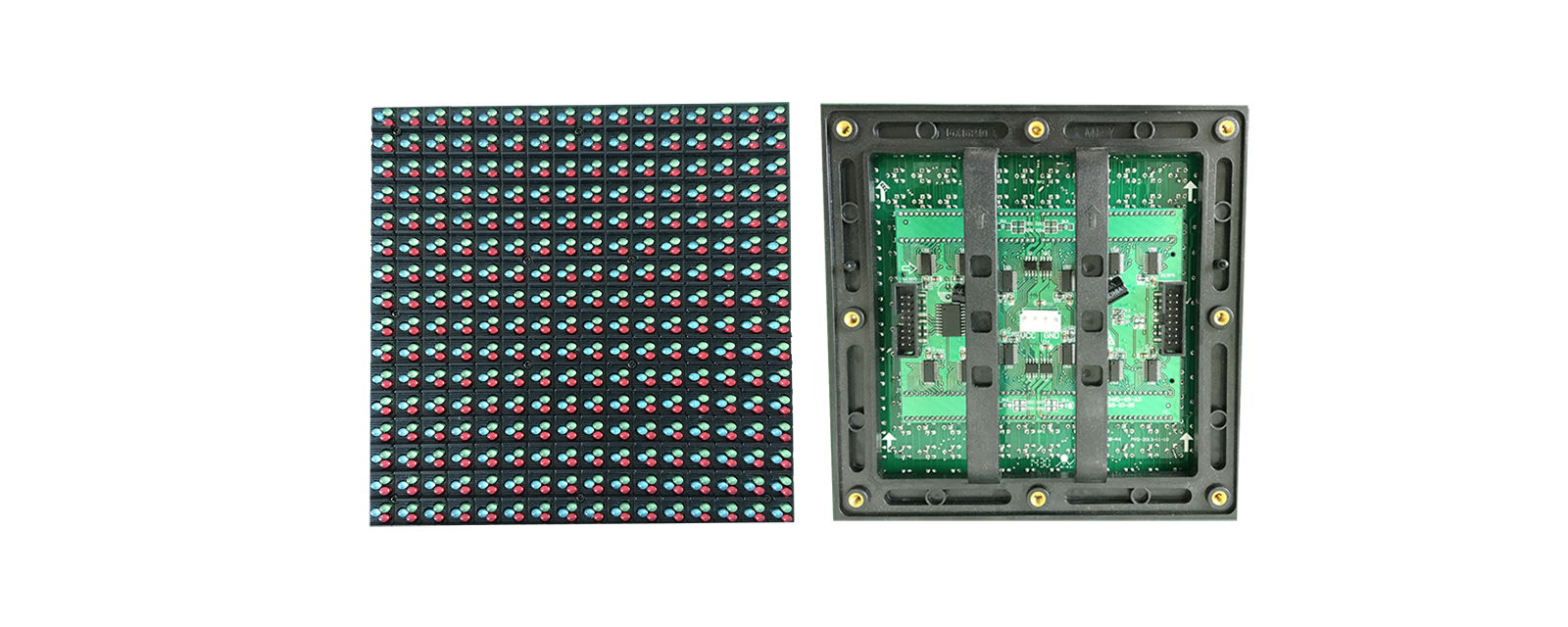

P10 DIP346 LED Module

P10 DIP346 LED Module

Product introduction |

This is new design of outdoor energy-saving LED display module. It has consistently bright and uniform picture quality, and it is reliable outdoor LED signage with ongoing performance. This is dramatically cost-efficient design with convenient installation and maintenance.

Cabinet Material:Cast Iron & Single Side Design

Application:The traditional outdoor LED screen is a state-of-the-art LED signage that complements any business with vibrant content presentation, along with an enhanced, outdoor-friendly design that saves cost and time during installation and operation. It is the ideal display to deliver captivating and meaningful content in any outdoor environment.

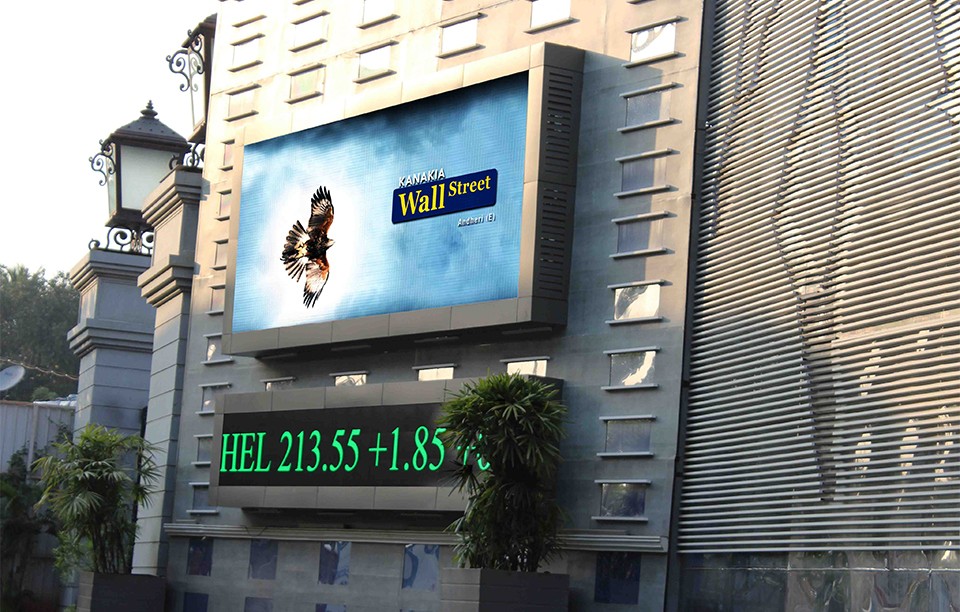

outdoor p10 960x612.jpg

Durable, Super Energy-Saving LED

It can save a great of power when you are using this type of module. The standard brightness is over 5,500 nits, and it can be made to over 7,500 nits too. The maximum power consumption is about 210 Watts per square meter and the average power consumption is 70 Wats per square meter. It saves at least 70% of power than standard screen.

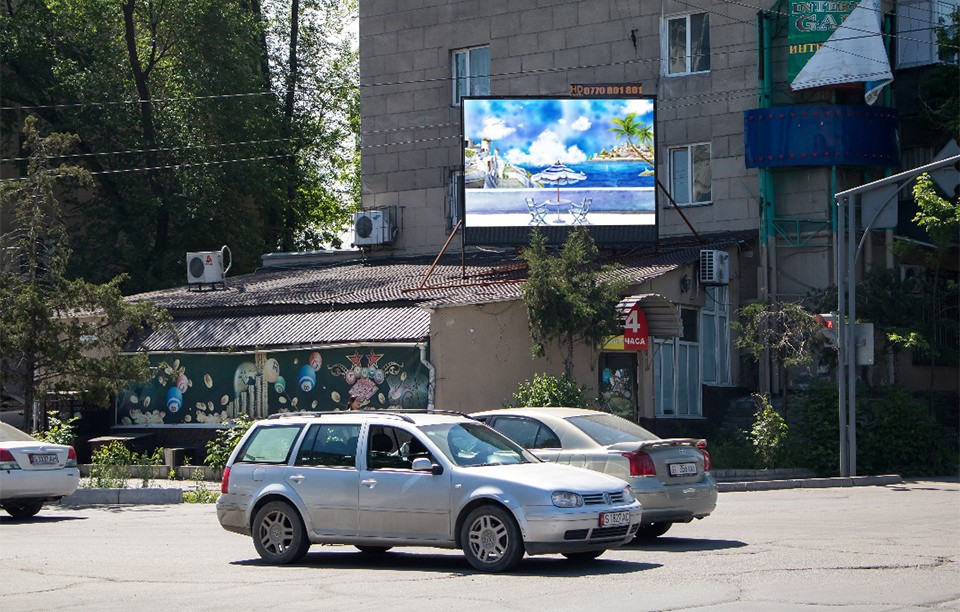

outdoor p10 0 960x612.jpg

360 Degree of Rotating Design

It undergoes strict testing to ensure ongoing performance when exposed to water, dust and outdoor elements. Ingress Protection (IP) validation confirms defense for the front IP65 and back (IP67) of the display, ensuring continuous operation regardless of the environment.

Product Parameters

ItemP10
Pixel Pitch10mm

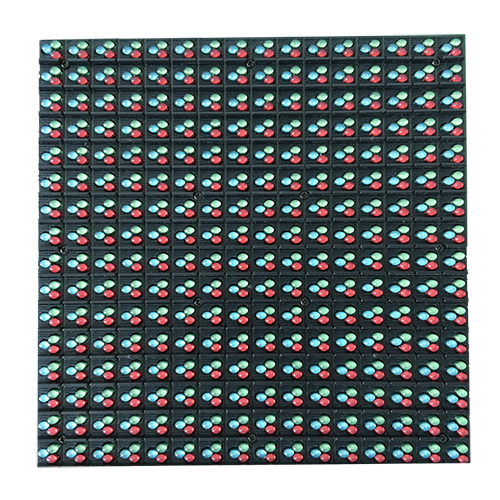

Pixel ConfigurationDIP346
Module Size160x160mm
Pixel Density10,000 dots
Cabinet MaterialCast Iron
Color Grayscale14Bit
Best viewing distance>10m
Brightness6500nit
Refresh Rate1920Hz
Grey Scale65536 level
IP RatingIP65
Power Consumption
(Max./Avg.)
210/70
W/sq.m.
Panel Dimensions
(W*H*D)
960x960x110mm
Panel Weight52kg
Input Voltage110~240V
Driving Mode
1/4 Scan
Horizontal Viewing Angle110 degree
Vertical Viewing Angle55 degree
AC Input FrequencyDC48V
Cabinet Installation TypeFixed Installation
