640X480 Front Service
P1.875 and P2.5 Indoor Front Service LED Screen
Product introduction |

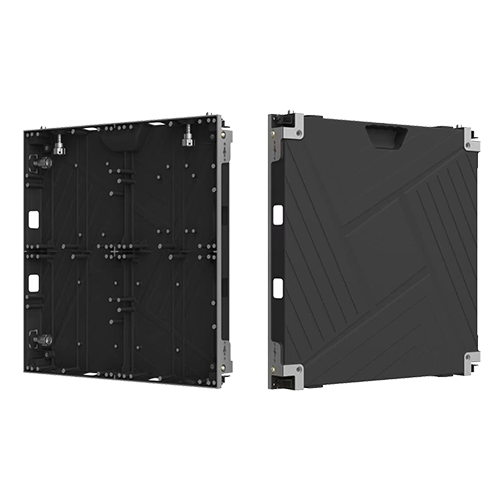

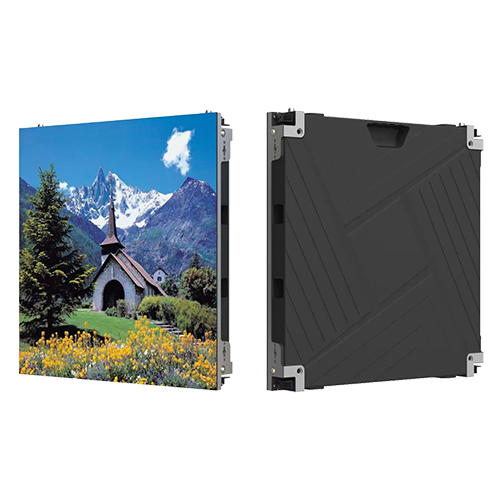

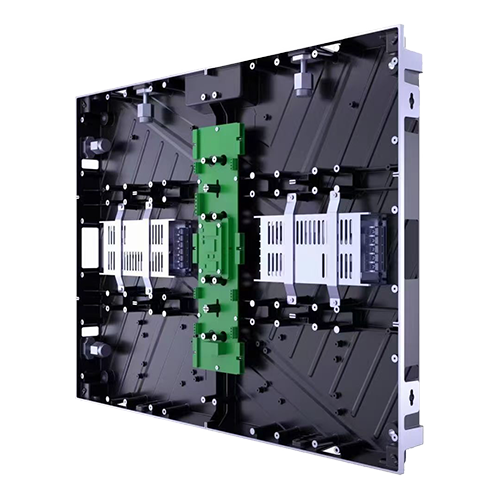

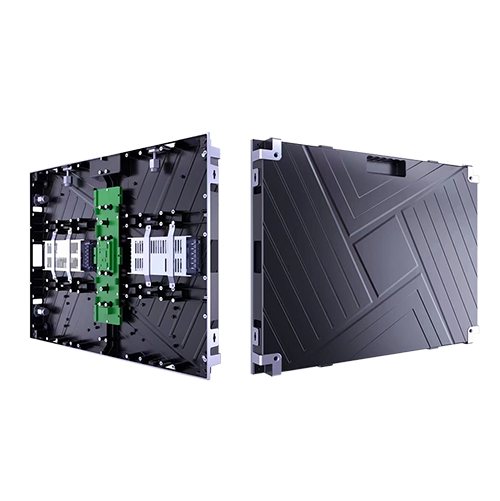

Ultra thin, ultra light weight with 480X480mm and 7kg weight , small cabinet to handle easily, portable and convenient to installation, assembly and disassembly.
Cabinet Material：Cast Iron&Single Side Design
Application：Die-cast aluminum material made with the features of high precise, high hardness and high strength.
Product Information
LED display module panel dimension is 240X240mm, the module use unique design with Black SMD 2121 LED lamp Encapsulation, High quality with stable performance.
high refresh rate up to 1920hz to realize high contrast, high definition with uniformity color effect. the display is perfect with clear image and visual present.
Strong Visual Impact
Pure black module mask and SMD2121 LED to make the LED display with higher contrast rate. 14 bit color depth to make the LED display with nature color and visual impact, giving viewer immersive feeling.high flatness, seamless connection using fast lock design, no gaps.
Product Parameters
| Item | Parameters |
|---|---|
| Pixel pitch | 2.5mm |
| LED Type | SMD2020 |
| LED Module Size | 160x160mm |
| LED Module Resolution | 64x64dots |
| Density per SQ.M | 160,000 dots/SQ.M |
| Signal Processing | 12 - 16 bit |
| Grey Level | 4096 - 65536 |
| Refresh Rate | > 3840Hz |
| Scan Mode | 1/32 |
| Brightness | > 800 nits |
| Viewing Distance | > 0.9m |
| Contrast Ratio | 5000:1 |
| Viewing Angle | 160 degree |
| Input Voltage | 100-300V/50-60Hz |
| Max Consumption | < 500 W/SQ.M |
| Ave Consumption | 100 - 240W/SQ.M |
| Working Temperature | -20 degree to 45 degree |
| Storage Temperature | -40 degree to 60 degree |
| Input Voltage | DC5V |
| IP Rate | IP43 |
| Working Humidity | 10% - 60% |
| Storage Humidity | 10% - 90% |
| Lifespan | > 100,000 hours |
| MTBF | > 10,000 hours |
| Service Type | Front Service & Rear Service |
| LED Lamp | Nationalstar |
| IC | ICN2153 |
| Control Card | Nova / Colorlight / LINSN / Huidu |
