P2.6 Indoor 500X500
P2.6 Indoor 500X500
Product introduction |
High-precision die casting aluminium material cabinet, extremely light weight, easy to assemble. It is durable and versatile for indoor and semi-outdoor environment. This screen can be used for both rental business and fixed installation on the building wall.
Cabinet Material：Cast Iron & Double Sided Design
Application： High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble.
Easy To Install
High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble.

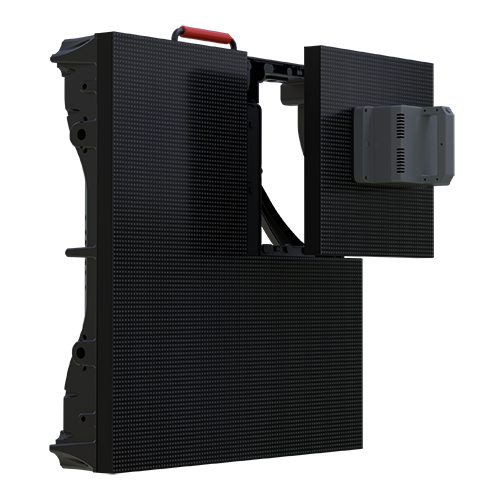

250x250mm module, compatible with P2.6/P2.97/P3.91/P4.81；Cabinet size 500mm W*500mm H*50mm D, one cabinet 7.5KG very thin and light, quick install.
MBI driving IC, refresh ≥3840H, ensures true 16bit gray level. Ensure no deformation of PCB Board, perfect flatness performance. Showing the real and full angle display.

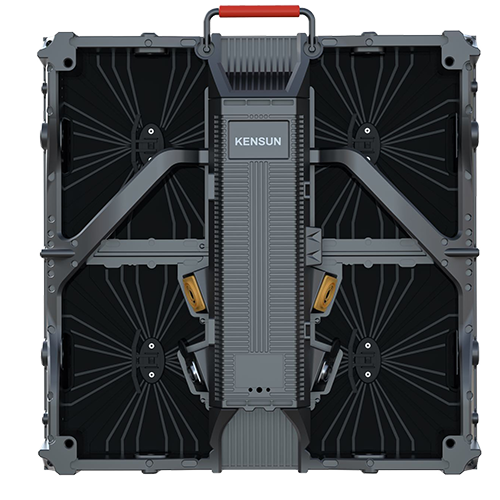

Support Front and Rear Access
R1 LED Cabinet is accessible from the front side of the body. All cables, power supply, control card, Hub card and other electronic components can be removed from the front side and back side. You can easily replace the new parts and save a great of your time.
Applicable in Different Environments
R1 can be made to high brightness over 3,500 nits. It can work properly for all the indoor environment and some of the semi-outdoor places. At the same time, it can also be used for some indoor events because it has a very good brightness and the light weight aluminium cabinet body.
|LED Type||SMD2020 1R1G1B|
|LED Module Size||250 x 250mm|
|LED Module Resolution||96x96 dots|
|LED Cabinet Size||500x500x58mm|
|Cabinet Resolution||192 x 192 dots|
|Screen Pixel||147,456 dots|
|Signal Processing||12 - 16 bit|
|Grey Level||4096 - 65536|
|Refresh Rate||> 3840Hz|
|Viewing Distance||> 2.6m|
|Viewing Angle||160 degree|
|Working Temperature||-20 degree to 45 degree|
|Storage Temperature||-40 degree to 60 degree|
|Working Humidity||10% - 60%|
|Storage Humidity||10% - 90%|
|Service Type||Front & Rear Service|
|Control Card||Nova / Colorlight|
