Indoor Simple Cabinet

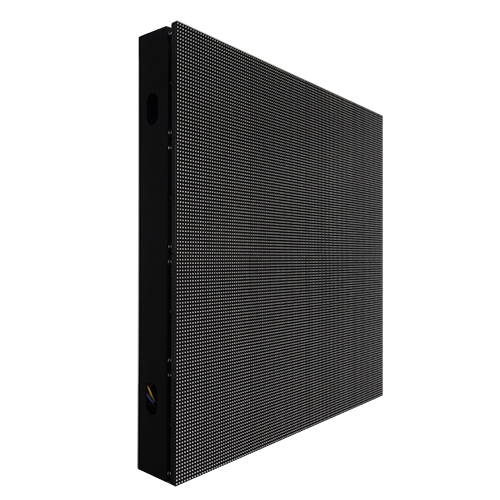

Indoor Simple LED Screen Cabinet Without Back Door

Product introduction |

Ultra thin, ultra light weight with 960x960mm and 17kg weight , small cabinet to handle easily, portable and convenient to installation, assembly and disassembly.

Cabinet Material:Cast Iron&Single Side Design

Application:Die-cast aluminum material made with the features of high precise, high hardness and high strength.

simple outdoor 2.jpg

Product Information

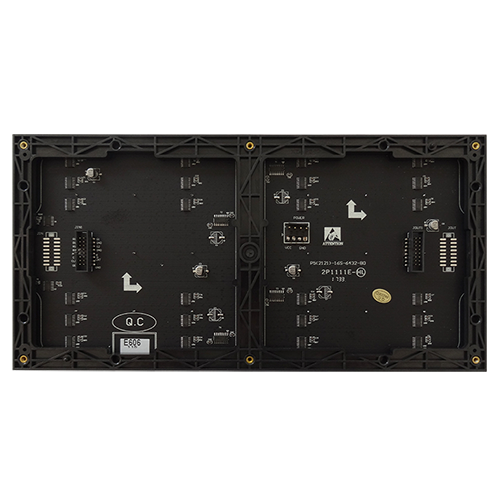

LED display module panel dimension is 240X240mm, the module use unique design with Black SMD 2121 LED lamp Encapsulation, High quality with stable performance.

high refresh rate up to 1920hz to realize high contrast, high definition with uniformity color effect. the display is perfect with clear image and visual present.


simple outdoor 3.jpg

Strong Visual Impact

Pure black module mask and SMD2121 LED to make the LED display with higher contrast rate. 14 bit color depth to make the LED display with nature color and visual impact, giving viewer immersive feeling.high flatness, seamless connection using fast lock design, no gaps.

Product Parameters

ItemParameters
Pixel pitch3.91mm
LED TypeSMD2020 1R1G1B
LED Module Size250 x 250mm
LED Module Resolution64 x 64 dots
LED Cabinet Size500x500x58mm
Cabinet Resolution128 x 128 dots
Screen Pixel65,536 dots
Signal Processing 12 - 16 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/16
Brightness>1,000 nits
Viewing Distance> 3.9m
Viewing Angle160 degree
Input Voltage
110-240V/50-60Hz
Max Consumption750W/SQ.M
Ave Consumption225W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
IP RateIP43
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan100,000 hours
Service TypeFront & Rear Service
LED Lamp
Nationalstar
ICICN2153
Control CardNova / Colorlight
Operation ApproachWindows


Video Playback
