P2.97 Outdoor 250X250
P2.97 Outdoor 250X250 Full Front Service Module
Product introduction |
This is new design of full front service LED modules for outdoor application. It is popular these two years worldwidely.
Cabinet Material：Cast Iron and Die-casting & Single Side Design

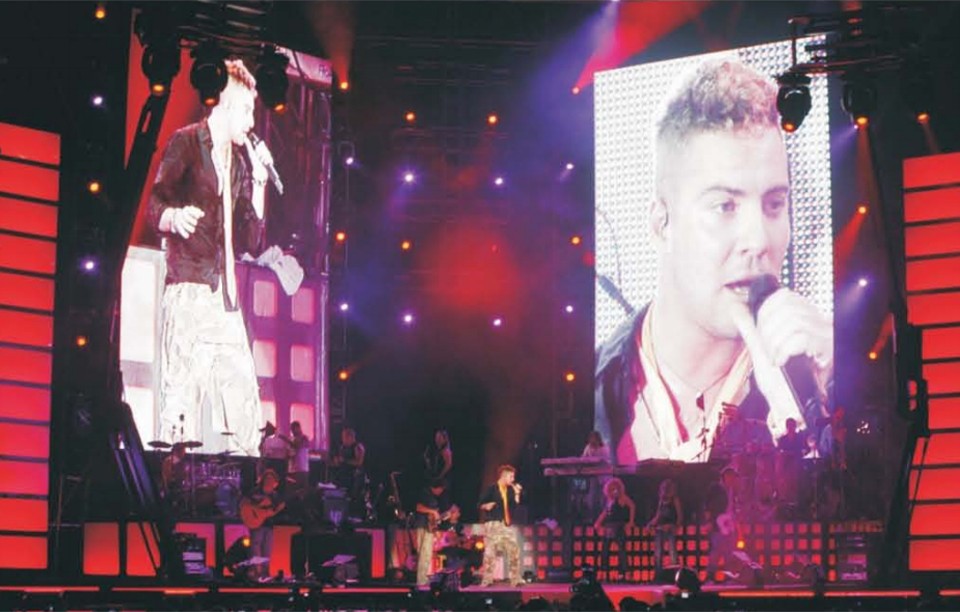

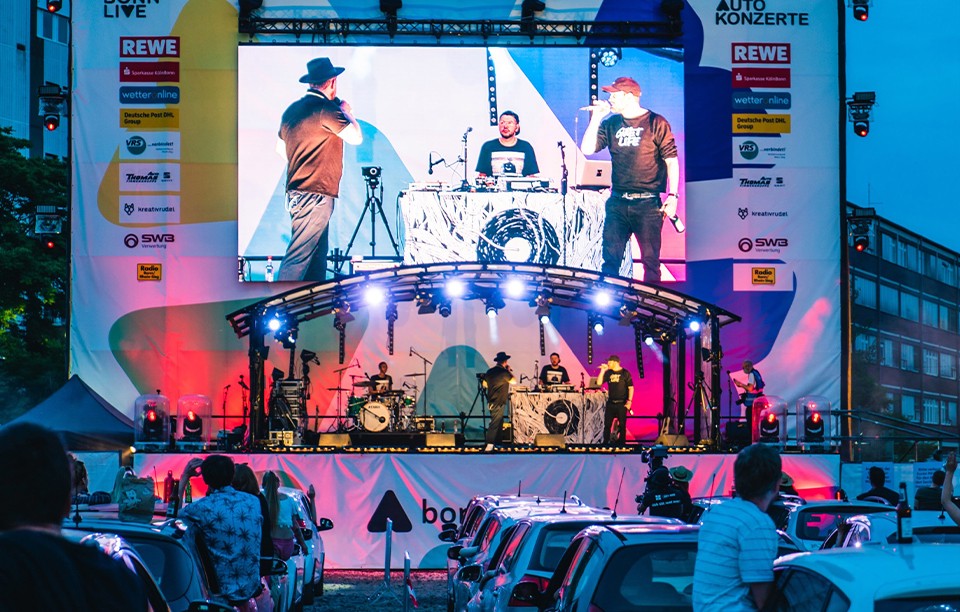

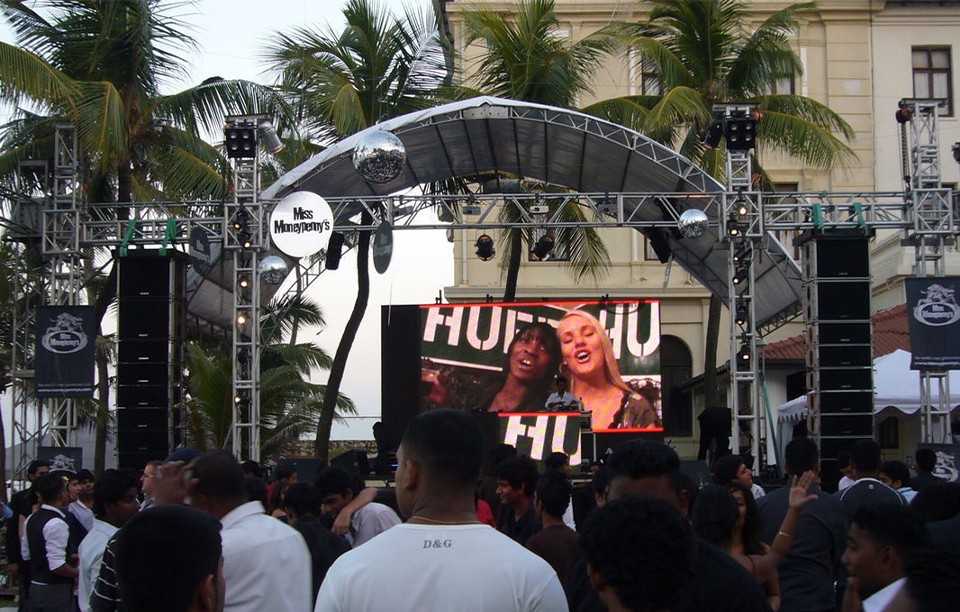

Application：It is applicable for commercial center, airport, big conference, city's landmark plaza, exhibition center and other outdoor advertising walls..
Support Both Front and Rear Service

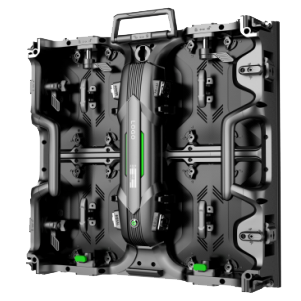

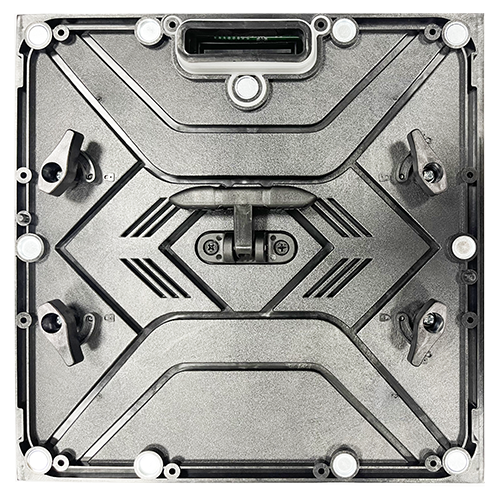

This LED display adopts full sealed cast iron cabinet to protect its inner componets and make the display body to withstand extremely high and low temperature. It can work whole day in outdoor environment. It also support full front service and rear service.
Energy-saving and Super High Brightness
This cabinet is designed to be slim and light weight, which is only 6.5kgs per cabinet 500x500mm. The common cathode aluminum LED module is designed to meet the requirement of outdoor big wall for full front service purpose. Its brightness can reach over 6,000 nits and the maximum power consumption is less than 250 Watts.
Ultra-light weight and thinner
This cabinet is less weight than standard outdoor LED cabinet. Usually, standard outdoor LED cabinet 960x960mm is over 54KGS per square meter, while this new design of slim cabinet is only 30KGS per square meter. In addition, the deepth is thin less than 60mm, but the standard outdoor cabinet is about 14cm deep.
Full Waterproof IP65
This cabinet is designed to be seamless on both front side and rear side. Its IP rate is IP65. It can effectively protect the dust and water. It also can unti-UV and anti-erosion. This cabinet can be used in all types of the harsh environment.
Product Parameters
| Value | P2.97 |
| Pixel Pitch(mm) | 2.97 |
| Pixel Matrix Per Sq.m | 112,896 |
| Pixel Configuration | SMD1415 |
| Brightness (nits) | 5000 |
| Scan | 1/21 |
| Module Dimension | 250x250mm |
| Cabinet Dimension | 500x500mm |
| Cabinet Resolution | 168x168 |
| Module Weight | 1.4kg |
| Cabinet Weight | 6.5kg ( Die-casting ) |
| Power Con. (Max / Avg) | 810 / 270 w/sq.m |
| Service Access | Front |
| Refresh Rate (HZ) | ≥3840 |
| Grey Scale (bit) | 16 |
| Viewing Angle (H/V) | 140 / 120 |
| IP Rate | IP65 |
| Input Voltage (AC) | 100V-240V |
| Lifespan | 100,000 hours |
