P5.33 Aluminium LED

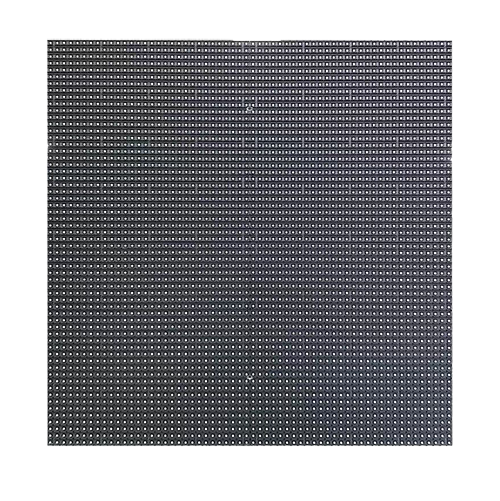

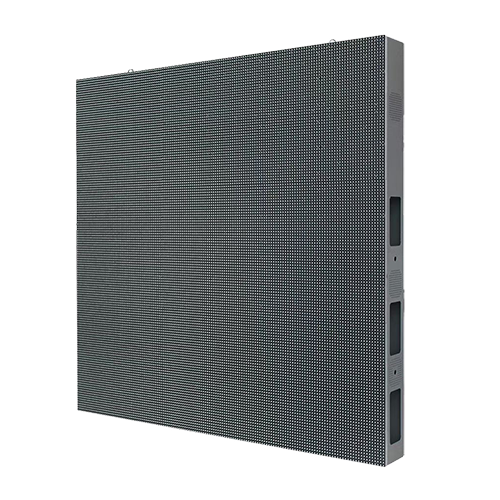

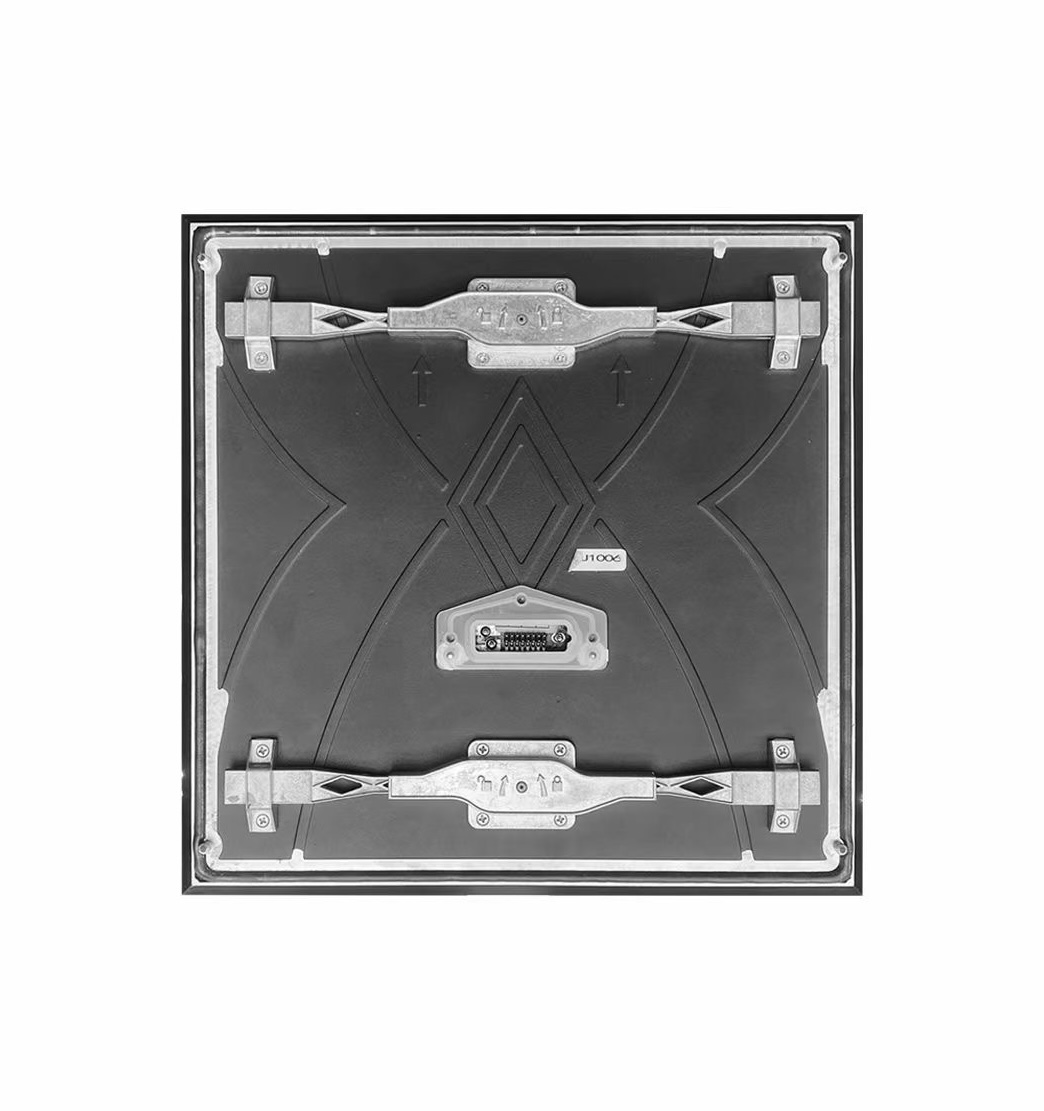

P5.33 Aluminium LED Full Front Service Module

Product introduction |

This is new design of full front service LED modules for outdoor application. It is popular these two years world-widely.

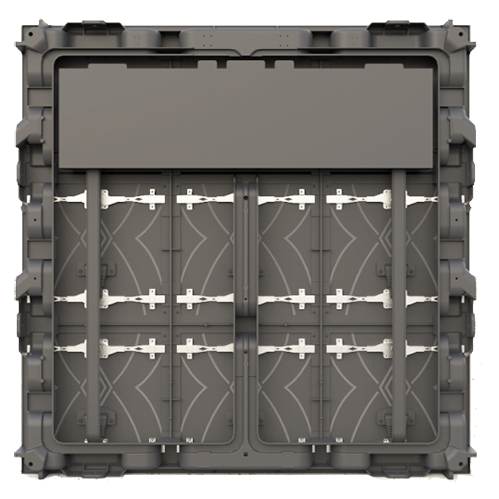

Cabinet Material:Cast Iron & Single Side Design & Double Sides Design

Application:It is applicable for commercial center, airport, big conference, city's landmark plaza, exhibition center and other outdoor advertising walls..

320 5-33 5.jpg

Strong Adaptability

This LED display is energy-saving with low power consumption. Its waterproof rate is IP68. Both front and rear maintenance could be supported.

320 5-33 6.jpg

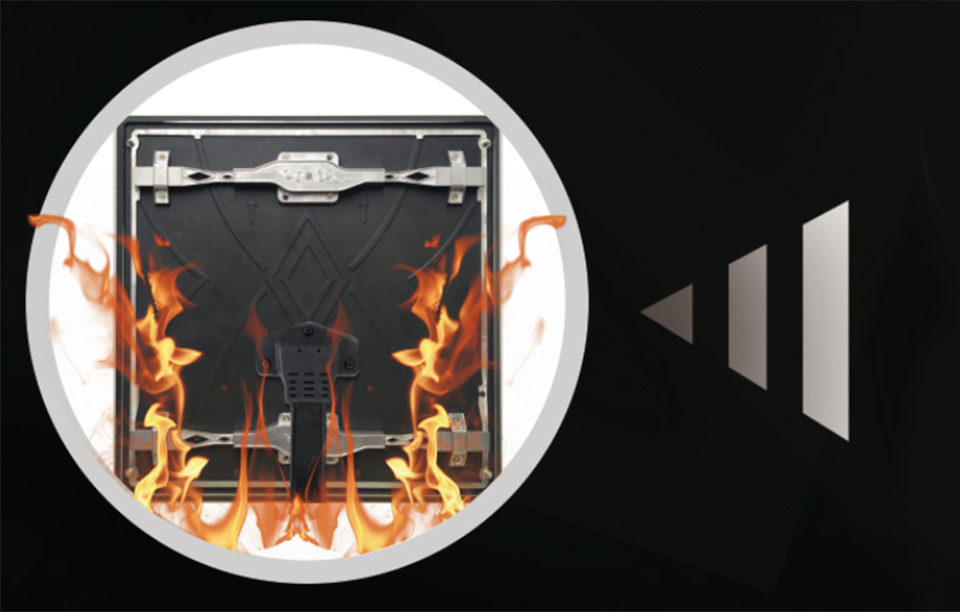

Anti-fire Material

This cabinet is designed to be full aluminium materials. It is not easy to be ignited. The module can bear high temperature durability, fast heat-dissipation. Its lampshade is VO standard material with anti-flame.

320 5-33 7.jpg

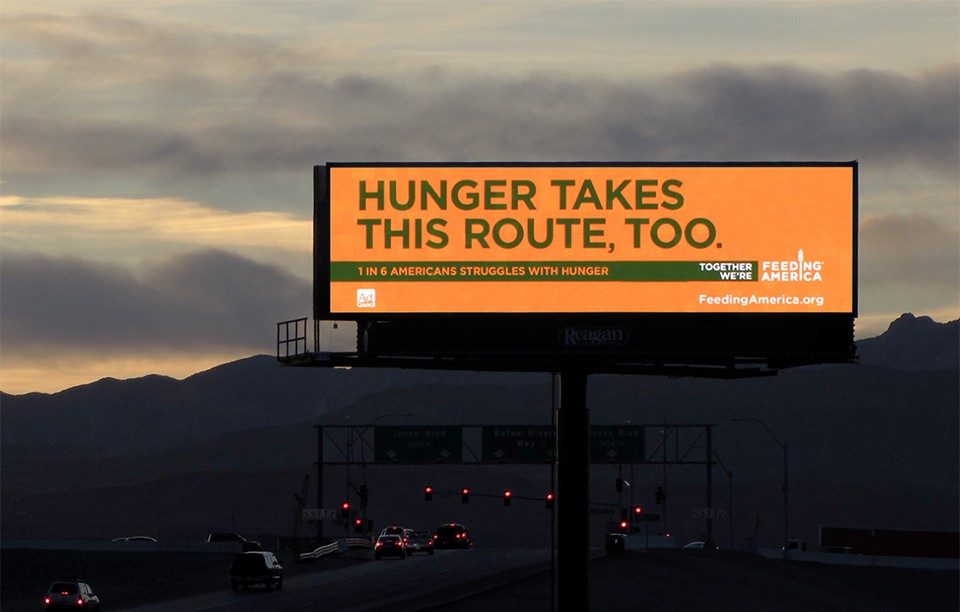

Application Fields

It is mainly applied for outdoor advertising boards. It is widely used in International Airport, Government City Hall, Cultural Museum, Central Plaza and some of the high-speed roads and etc.

320 5-33 8.jpg

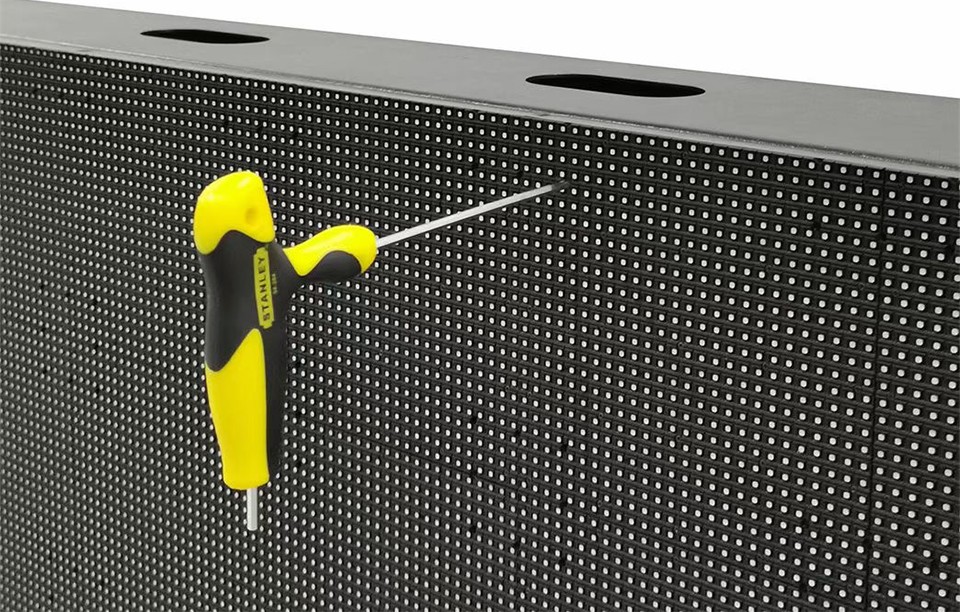

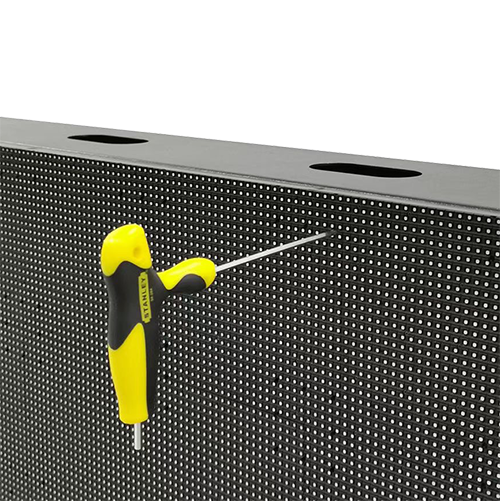

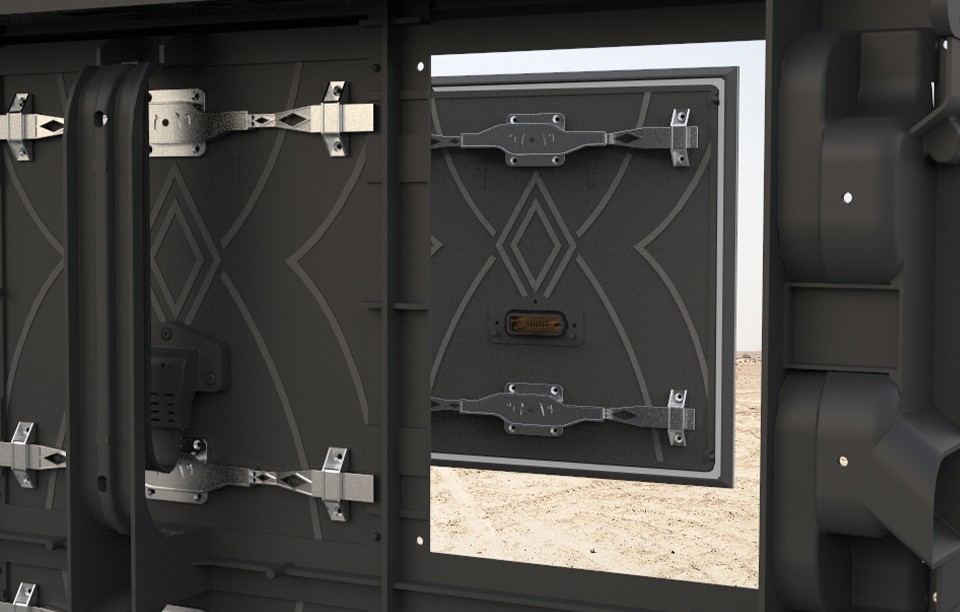

Front Maintenance Tool

This cabinet is designed to be full front service by a simple tool. Some other front service design would require for a very expensive magnetic front service tool, but this cabinet only needs a simple front service tool. It is very easy and simple to remove modules.

Product Parameters

ItemParameters
Pixel Pitch5.33
Pixel Structure1R1G1B
LED LampSMD2727
Resolution35,344 dots
Module Size320x320mm
Module Resolution60x60
Cabinet Size 1960x960x100mm
Cabinet Size 21280x960x100mm
MaterialCast Iron
Scan Mode1/6
Formality<0.10
Grey Scale14Bit
IP rateIP68
Service TypeFront and rear service
Brightness> 5,500 nits
Colour Temperature3200 - 12000 adjustable
Viewing AngleH140/V120
Contrast Ratio>5,000:1
Drive ModeConstant Drive
Refresh Rate> 3,840Hz
Input Voltage110-240V
Max Power Consumption<561W
Ave Power Consumption<196W
Working Temperature-20 degree to +80 degree
Working Humidity10%~95%
Suitable Receiveing CardMRV336 or others
