P3.91 45° FFS Module

P3.91 45° Outdoor Full Colour LED Module

Product introduction |

For outdoor fixed installation or rental application; SMD LED Display; Weatherproof to IP65/65 standards; high resolution images and long lifetime; Easily configured for various size and aspect ratios; Wide viewing angle;

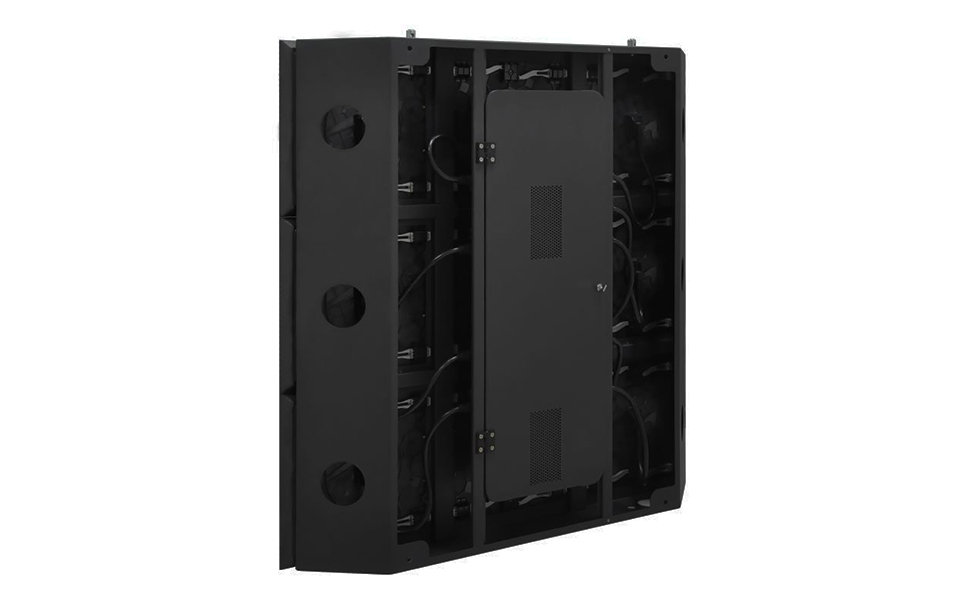

Cabinet Material:Cast Iron & Double Sided Design

Application:This type of double sided LED display can be used for advertising media on the street because it has ultra-high brightness over 7,500 nits per square meter and full waterproof protection IP67.

ceiling 0 960x612.jpg

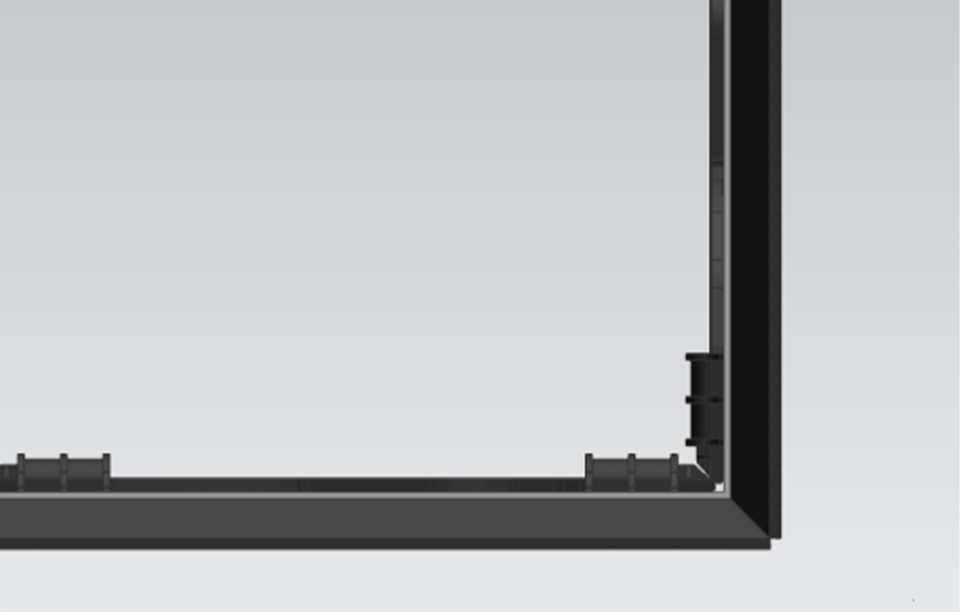

Seamless Joint


Seamless splicing and it could be adjusted to any angle. It is easier to maintain with low noise and low power consumption. 45-degree design can reach a seamless joint together at the corner place.

ceiling 1 960x612.jpg

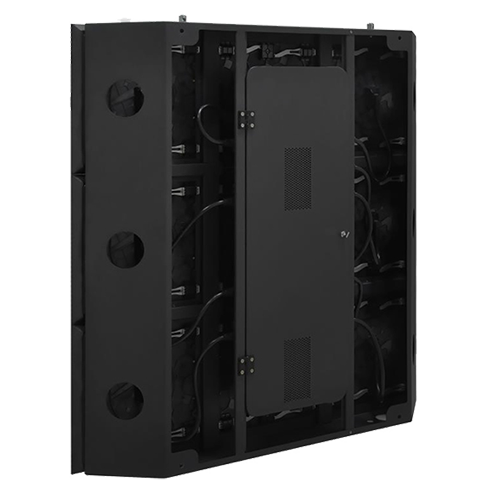

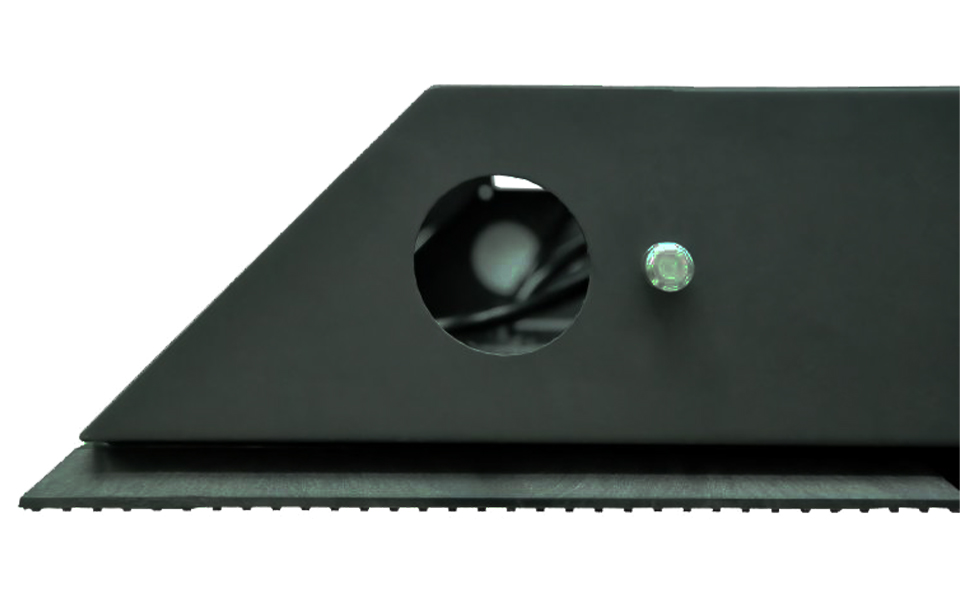

Good Heat Dissipation


This cabinet is made by aluminium structure, which is efficient to release heat from the module and cabinet inner side. It supports both online and offline controlling systems.

ceiling 2 960x612.jpg

Multiple Pixel Pitches


This display has undergone special treatment and it can be joint with six different sides together and other special shapes. This is not able to achieve by traditional screens.

ceiling 3 960x612.jpg

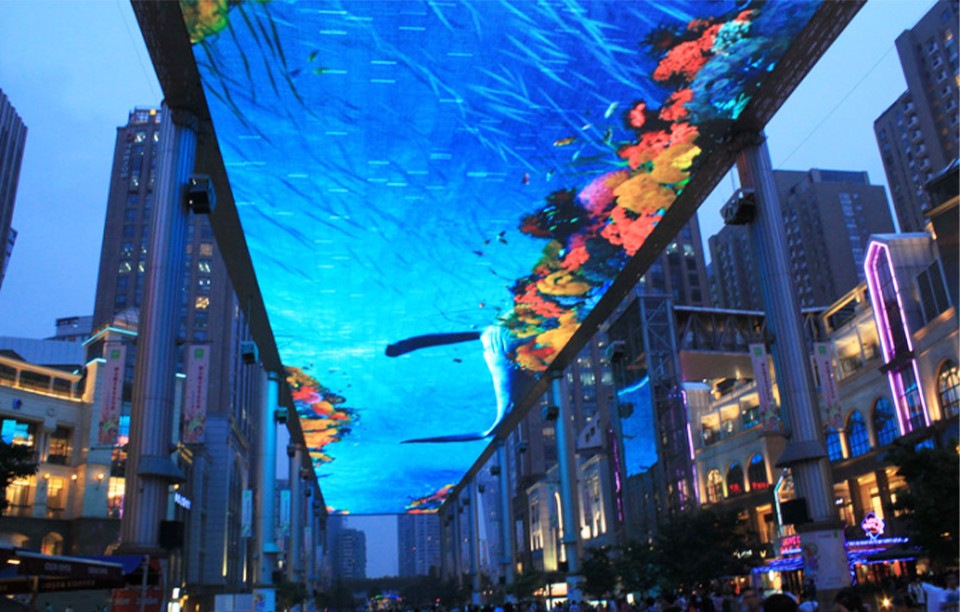

Application Environment


This display can be widely used in Museums, Planetariums, Sicene and Technology Centres, Children's Palaces, Exhibition Halls, Stadiums, Star Hotels, Railway Stations and other places.

Product Parameters

ItemParameters
Pixel pitch3.91
LED TypeSMD1921

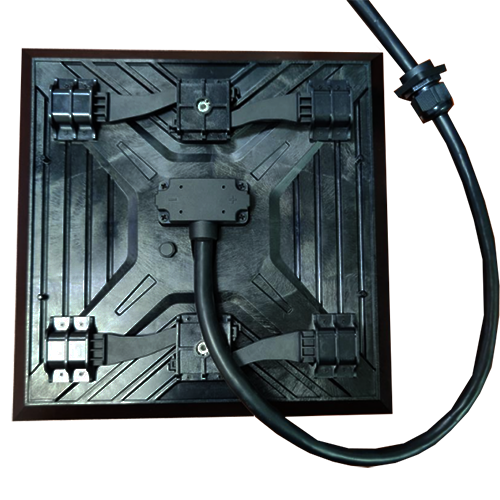

LED Module Size250x250mm
LED Module Resolution64x64 dots
Density per SQ.M65,536 dots/SQ.M
Signal Processing 16 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/8
Brightness> 5,500 nits
Viewing Distance> 4m
Viewing Angle160 degree
Input Voltage
100-240V/50-60Hz
Max Consumption800 W/SQ.M
Ave Consumption300 W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
Input VoltageDC5V
IP RateIP65
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan > 100,000 hours
MTBF> 10,000 hours
Service TypeFront Service and Rear Service
LED Lamp
Nationalstar
ICICN2038s/2153
Control CardNova / Colorlight / LINSN / Huidu
Module Weight1.1kgs
Cabinet Weight56kgs per piece
Cabinet Depth120mm
HUB PortHUB75D
Cabinet MaterialCast Iron
