480x540 LED Cabinet

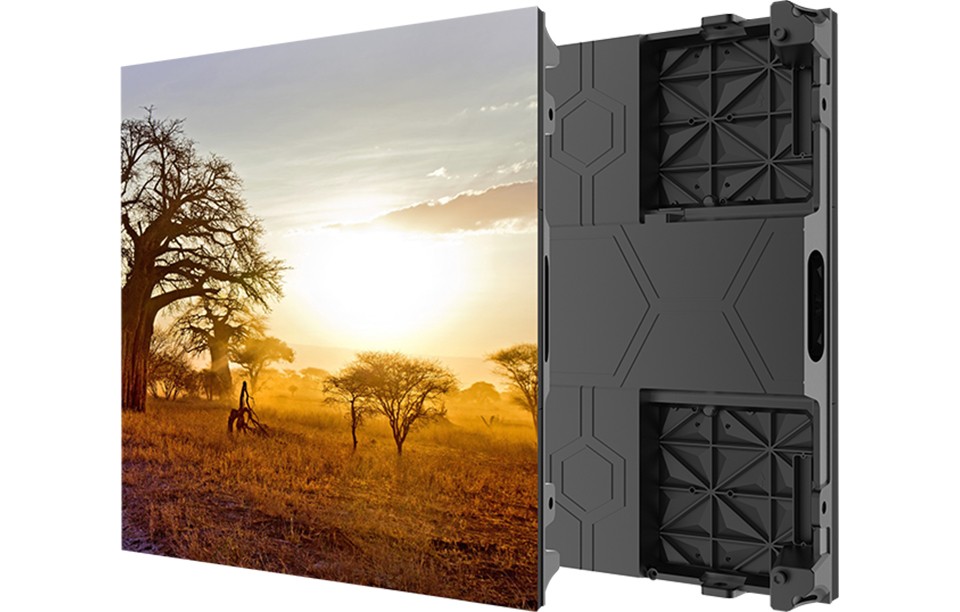

HD 480x540 Rental LED Cabinet

Product introduction |

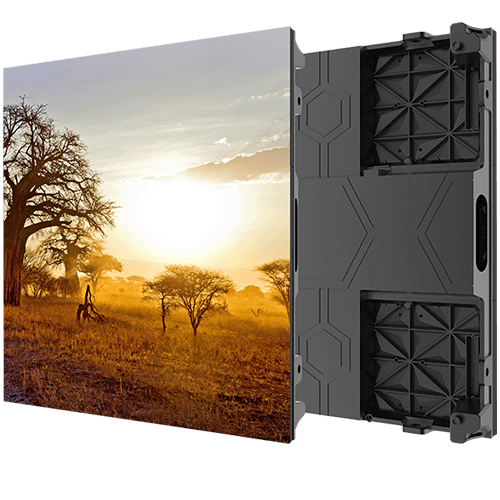

480mm×540mm front service LED cabinet can be maintained from the front side. It does not have the glare light, so the picture quality is extremely high.

480x540 0.jpg

Product Information

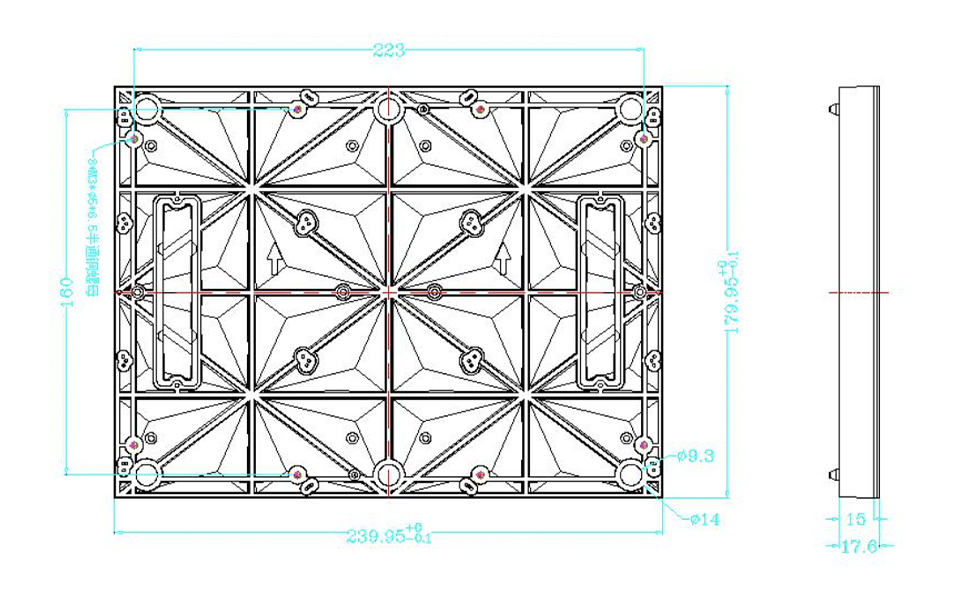

LED display module panel dimension is 240x180mm, the module use unique design with Black SMD1515 LED lamp Encapsulation, High quality with stable performance.

high refresh rate up to 1920hz to realize high contrast, high definition with uniformity color effect. the display is perfect with clear image and visual present.

480x540 1.jpg

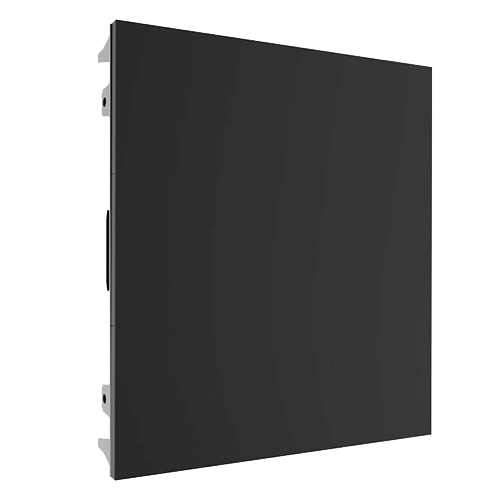

Strong Visual Impact

Pure black module mask and SMD2121 LED to make the LED display with higher contrast rate. 14 bit color depth to make the LED display with nature color and visual impact, giving viewer immersive feeling.high flatness, seamless connection using fast lock design, no gaps.

480x540 2.jpg

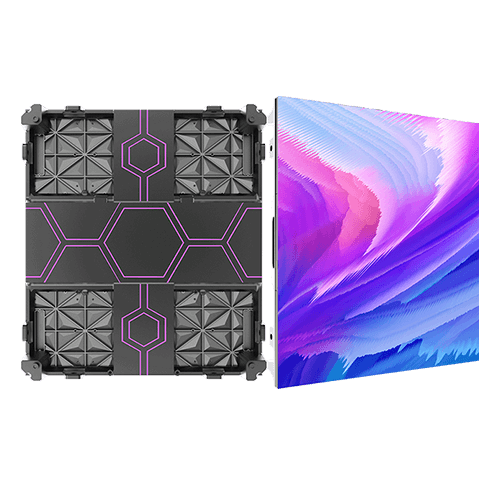

Seamless Joint

LED display cabinet can be joint seamlessly from the horizontal and vertical orientation.

This effectively reduces the interface of the joint gaps so as to reach a perfect displaying picture.

480x540 3.jpg

View from short distance

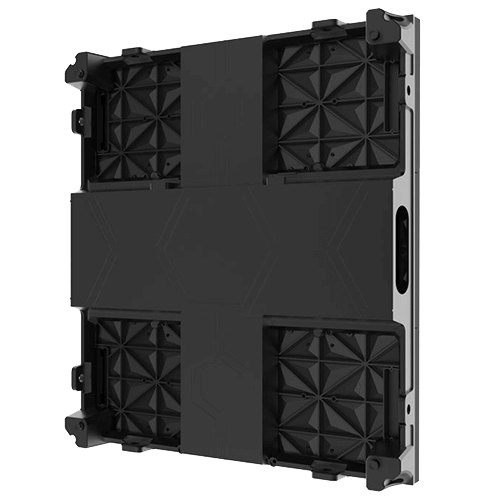

This cabinet is made by die-casting aluminium CNC design, so the heat will be released quickly by cabinet. The pixel pitch is very small, then people can view the LED screen from very close distance.

Product Parameters

Pixel pitch2.5mm
LED TypeSMD1515
LED Module Size240x180x18mm
LED Module Resolution96x72dots

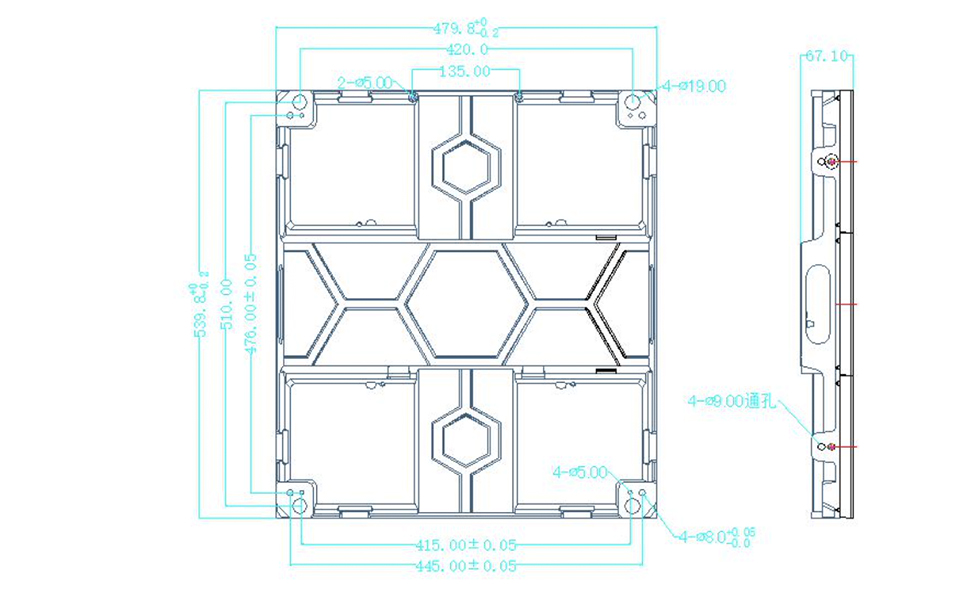

LED Cabinet Size480x540x67mm
LED Cabinet Resolution192x216
Density per SQ.M160,000 dots/SQ.M
Signal Processing 14 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/24
Brightness> 1000 nits
Viewing Distance> 2.5m
Contrast Ratio> 5000:1
Viewing Angle160 degree
Input Voltage
Max Consumption< 550 W/SQ.M
Ave Consumption188W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
Input VoltageDC5V
IP RateIP43
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan > 100,000 hours
MTBF> 10,000 hours
Service TypeFront Service & Rear Service

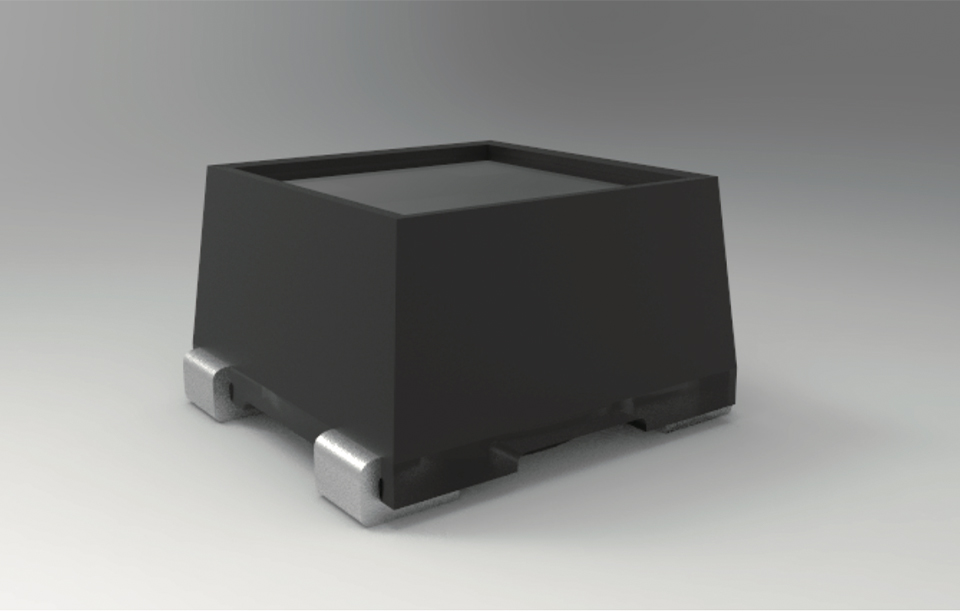

LED Lamp
Control CardNova / Colorlight / LINSN / Huidu
