480X480 LED Cabinet

480X480 LED Cabinet

Product introduction |

Suitable for all kinds of scenarios,can be customized Suitable for all Suitable for all kinds of scenarios.

Cabinet Material:Die-casting Aluminium LED Cabinet

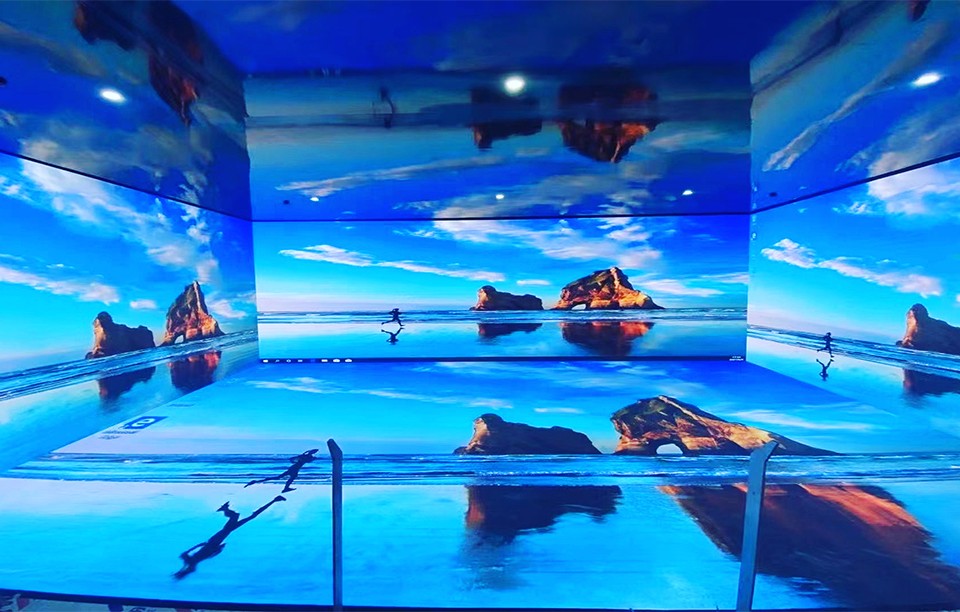

Application:Those LED products were widely used in both indoor and outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.

480x480 0.jpg

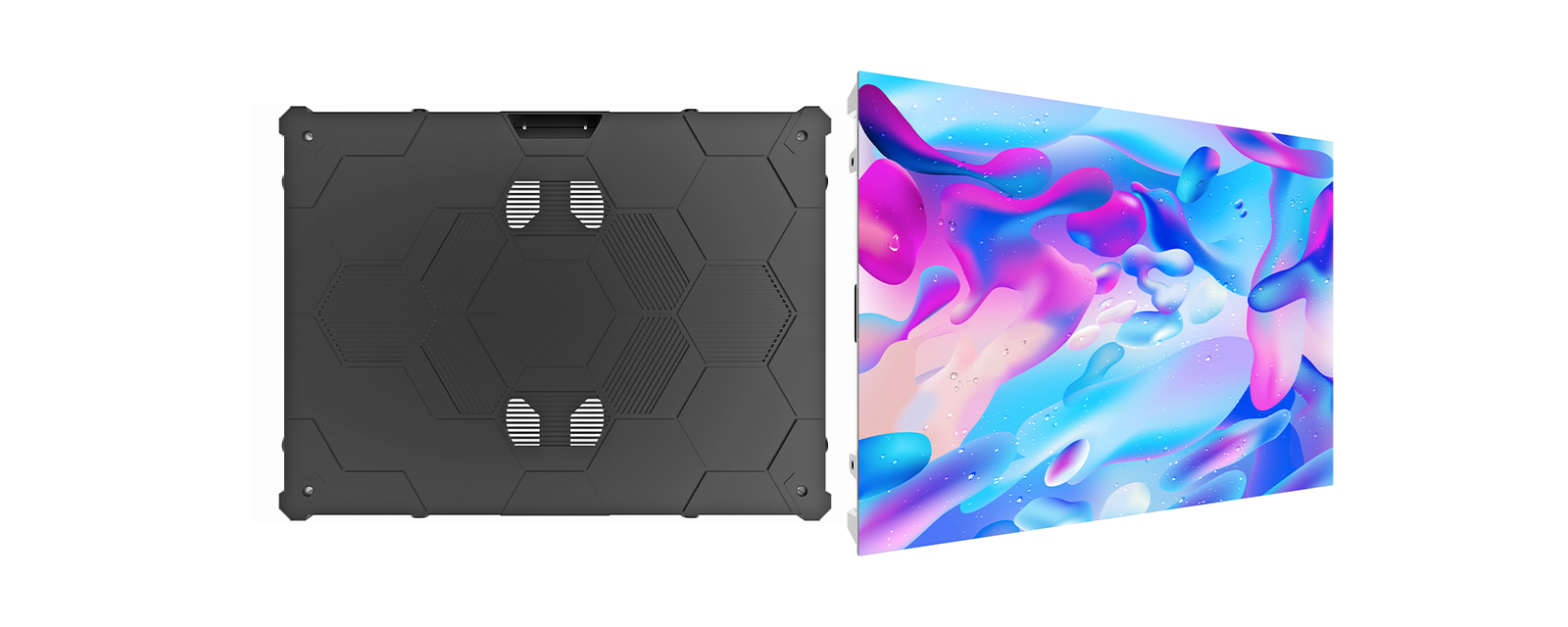

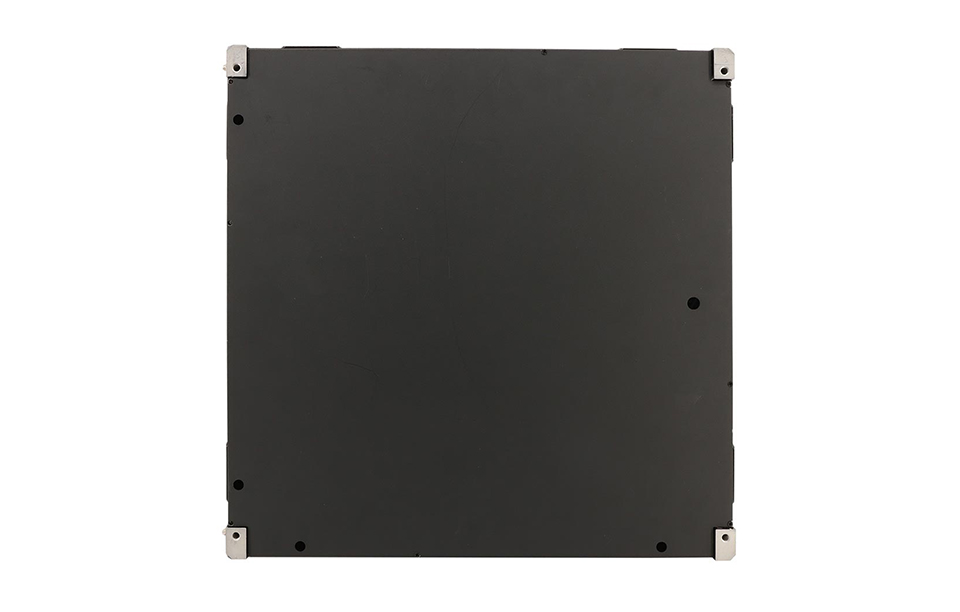

480mmx480mm Cabinet

We have this full front service LED cabinet with 480x480mm dimension. It is die-casting al-cabinet. It is super slim and ultra-thin.

480x480 1.jpg

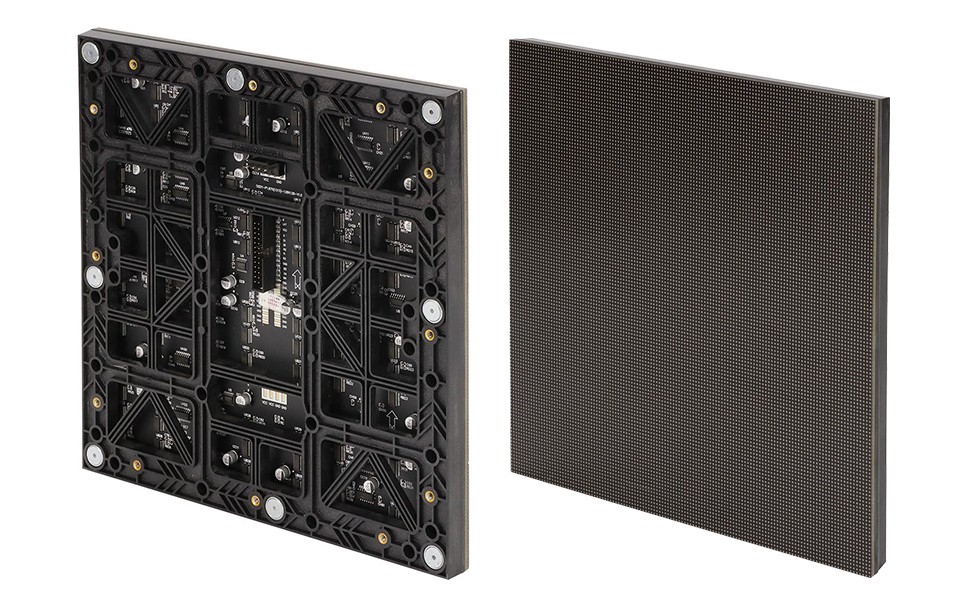

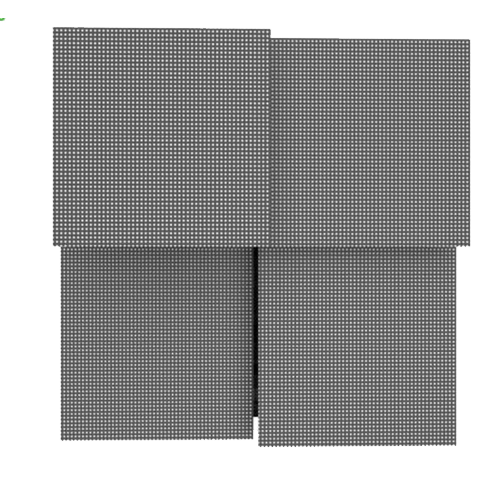

240mmx240mm Module

We have this 240x240mm LED module in P1.875mm and P2.5mm pixel pitch. It can be made by standard LED lamp or black LED lamp.

480x480 2.jpg

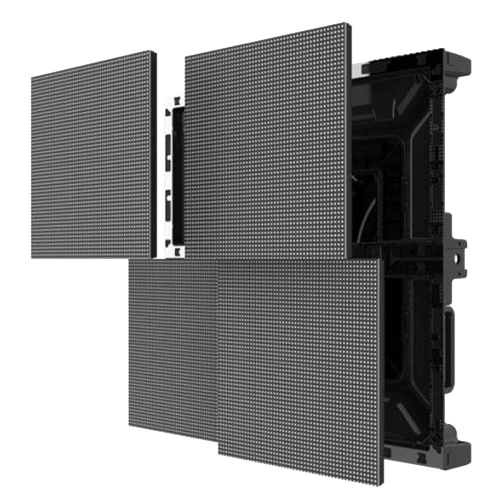

Suitble for Wall

You can attach this type of LED cabinet to the wall directly. It is not necessary to spare the maintenance space. It can directly attach to the wall.

Product Parameters

ItemParameters
Pixel pitch2.5mm
LED TypeSMD2020
LED Module Size240x240mm
LED Module Resolution96x96dots
Density per SQ.M160,000 dots/SQ.M
Signal Processing 12 - 16 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/32
Brightness> 800 nits
Viewing Distance> 0.9m
Contrast Ratio5000:1
Viewing Angle160 degree
Input Voltage
100-300V/50-60Hz
Max Consumption< 500 W/SQ.M
Ave Consumption100 - 240W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
Input VoltageDC5V
IP RateIP43
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan > 100,000 hours
MTBF> 10,000 hours
Service TypeFront Service & Rear Service
LED Lamp
Nationalstar
ICICN2153
Control CardNova / Colorlight / LINSN / Huidu
