Die-casting LED Cube
Die-casting Outdoor LED Magic Cube Display
Product introduction |
Suitable for all kinds of scenarios,can be customized Suitable for all Suitable for all kinds of scenarios.

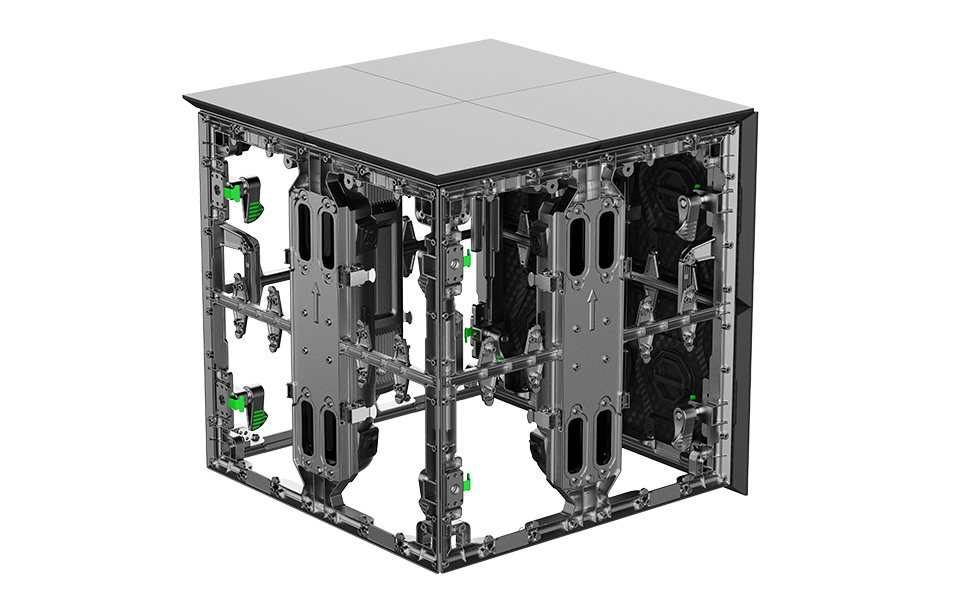

Cabinet Material： This type of outdoor cube display is made by Nationalstar high quality LED lamp.
Application：Those LED products were widely used in both indoor and outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.
![[1]cube 960x612.jpg](/upload/image/20230805/1691232102702647.jpg "1691232102702647.jpg")

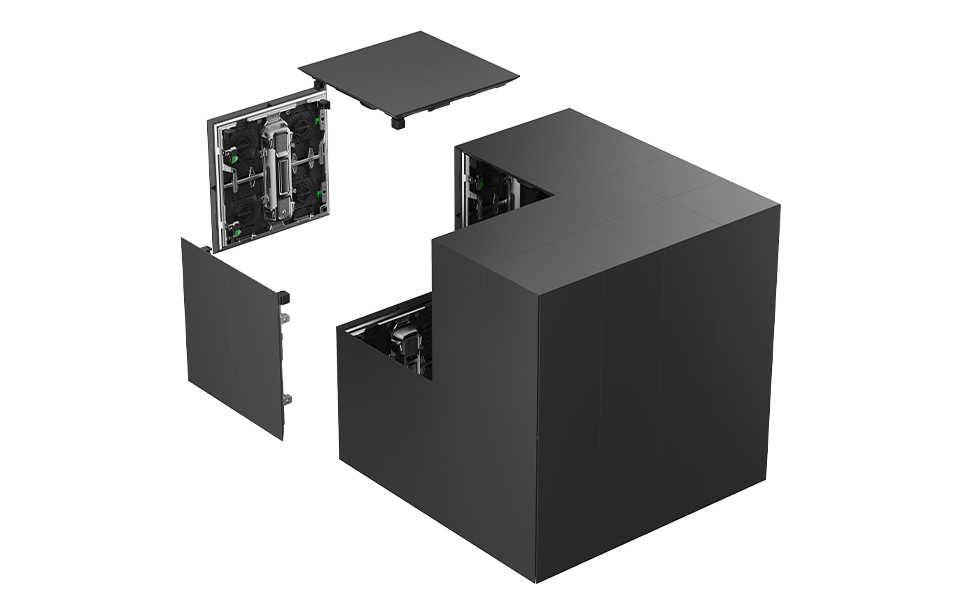

Outdoor IP67 Rated
This type of outdoor flexible LED module can be put inside of the water, and its waterproof rate is IP67. Improved brightness, with min. brightness up to 6000 nits, more readable for outdoor environments. High ingress protection, versatile and suitable for diverse indoor and outdoor environments.
![[2]cube 960x612.jpg](/upload/image/20230805/1691232153643621.jpg "1691232153643621.jpg")

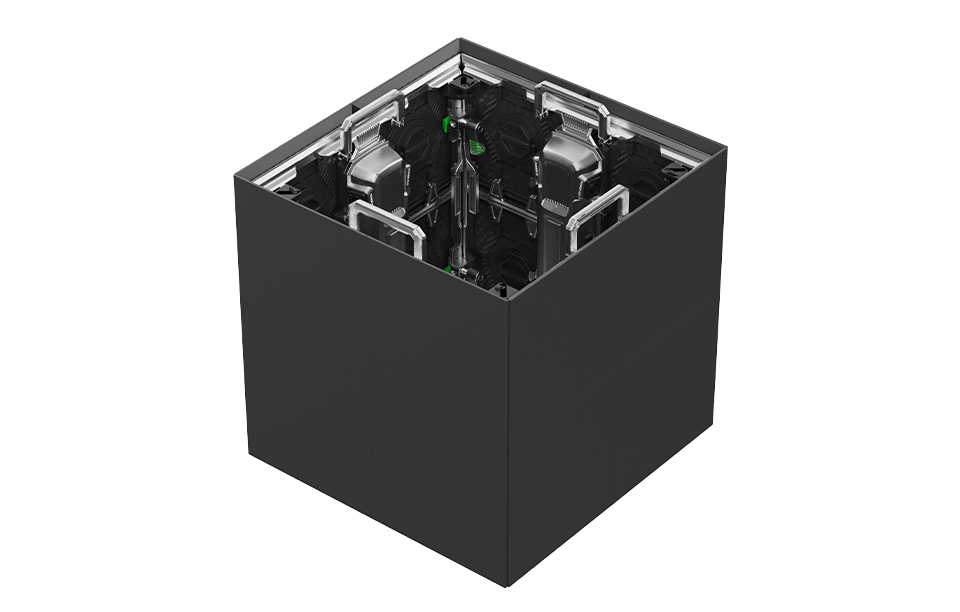

100% Full Front Service
Outdoor cube LED module has magnets and iron plates, so it can be compatible with the front service tool. Specially designed modue edge, narrow splicing and alignment gap, more intergrated visual experience.
![[3]cube 960x612.jpg](/upload/image/20230805/1691232203799057.jpg "1691232203799057.jpg")

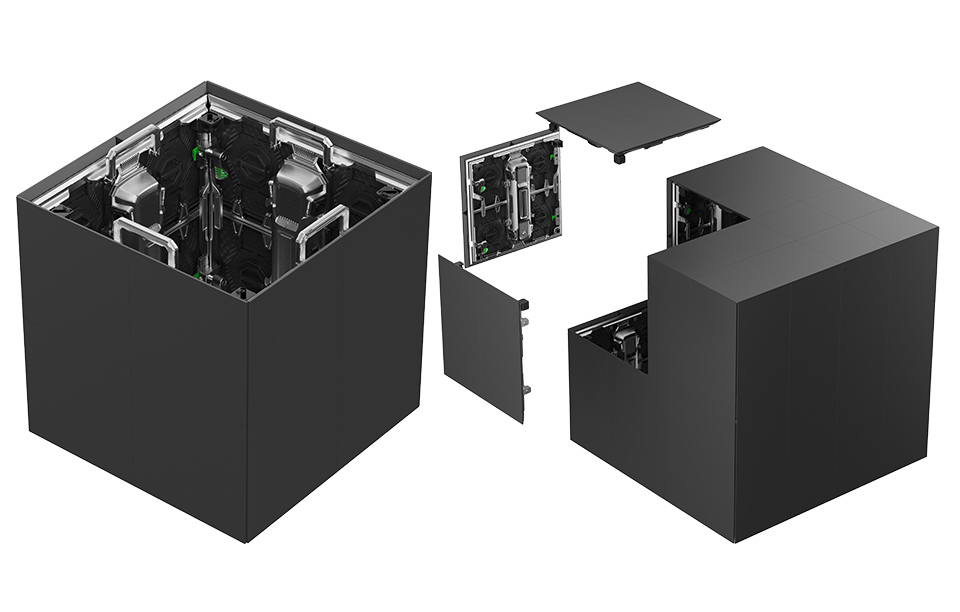

Easy Installation
This type of magnetic connection to assemble is very easy to install even it is for outdoor environment. Flexible installations, can be hung or mounted on the wall, or supported on a standing column.
![[4]cube 960x612.jpg](/upload/image/20230805/1691232288858300.jpg "1691232288858300.jpg")
Support 360 degree Angle
It supports any angle to fee the high quality of visual effect. With 5 sides displaying contents at the same time, providing more creative display possibilities. It has a flexible design to support 4 x sides also.
Product Parameters
| Item | Parameters |
|---|---|
| Pixel pitch | 2.6 |
| LED Type | SMD1415 |
| LED Module Size | 250 x 250mm |
| LED Module Resolution | 96 x 96 dots |
| Signal Processing | 12 - 16 bit |
| Grey Level | 4096 - 65536 |
| Refresh Rate | > 3840Hz |
| Scan Mode | 1/10 |
| Brightness | >6,000 nits |
| Viewing Distance | > 3.8m |
| Viewing Angle | 110 degree |
| Input Voltage | 100-240V/50-60Hz |
| Max Consumption | 750W/SQ.M |
| Ave Consumption | 225W/SQ.M |
| Working Temperature | -20 degree to 45 degree |
| Storage Temperature | -40 degree to 60 degree |
| IP Rate | IP67 |
| Working Humidity | 10% - 60% |
| Storage Humidity | 10% - 90% |
| Lifespan | 100,000 hours |
| Service Type | Front & Rear Service |
| LED Lamp | Nationalstar |
| IC | ICN2153 |
| Control Card | Nova / Colorlight |
| Available Size Qty | 4 sides or 5 sides |
| Avaiable Cube Size | 500x500mm 750x750mm 1000x1000mm |
