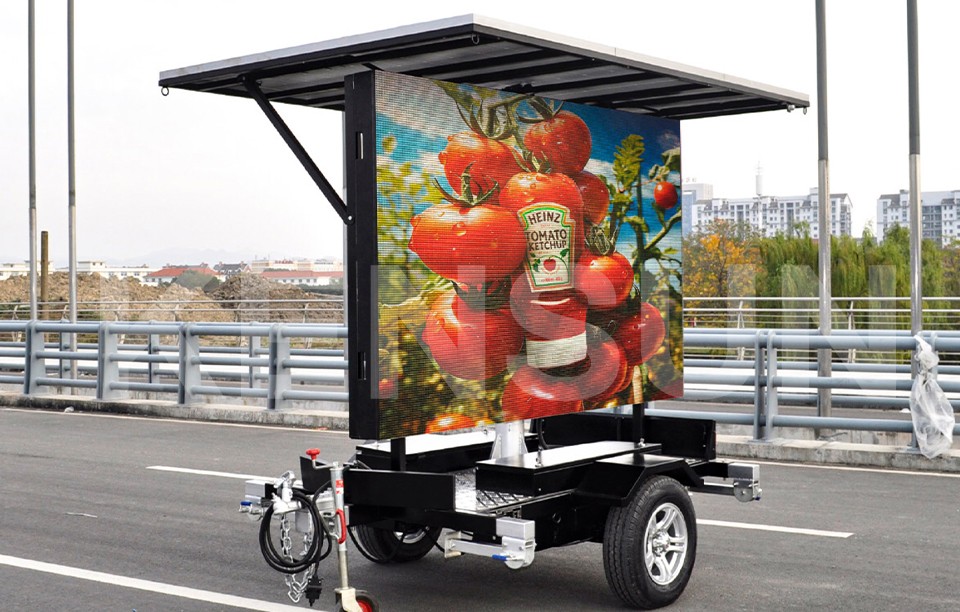

P8 Energy-saving Trailer LED

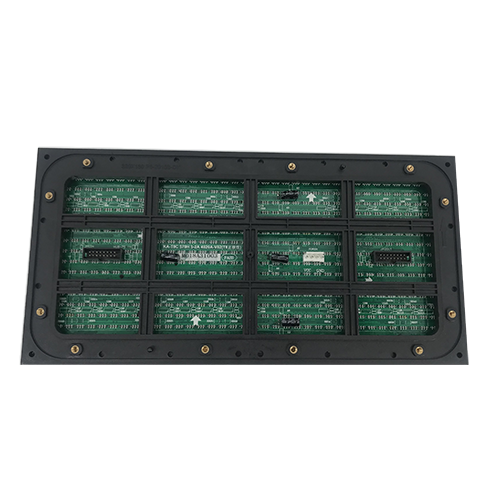

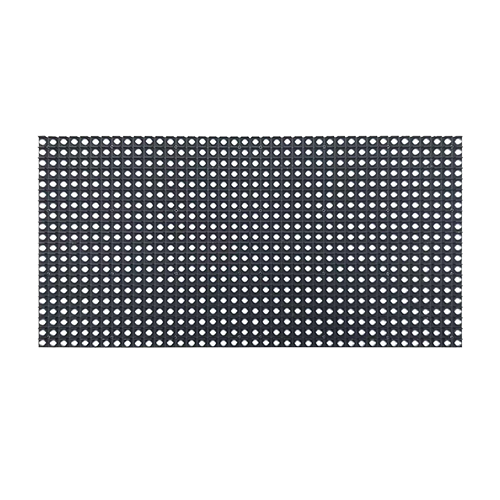

P8 DIP570 LED Module Outdoor Energy-Saving Design LED Trailer Display Screen
Product introduction |
This is new design of outdoor energy-saving LED display module. It has consistently bright and uniform picture quality, and it is reliable outdoor LED signage with ongoing performance. This is dramatically cost-efficient design with convenient installation and maintenance.
Cabinet Material：Cast Iron & Single Side Design

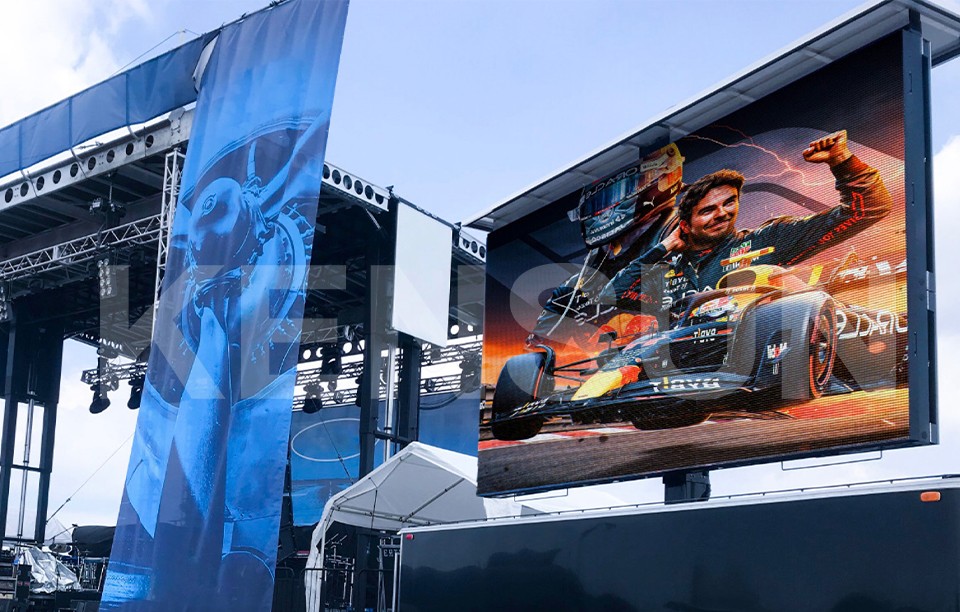

Application：The traditional outdoor LED screen is a state-of-the-art LED signage that complements any business with vibrant content presentation, along with an enhanced, outdoor-friendly design that saves cost and time during installation and operation. It is the ideal display to deliver captivating and meaningful content in any outdoor environment.
Durable, Super Energy-Saving LED
It can save a great of power when you are using this type of module. The standard brightness is over 5,500 nits, and it can be made to over 7,500 nits too. The maximum power consumption is about 210 Watts per square meter and the average power consumption is 70 Wats per square meter. It saves at least 70% of power than standard screen.

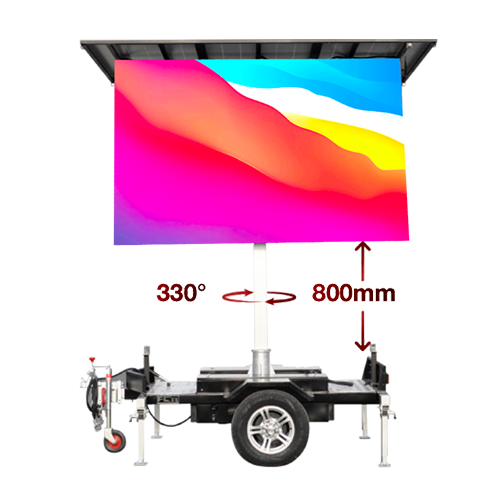

360 Degree of Rotating Design
It undergoes strict testing to ensure ongoing performance when exposed to water, dust and outdoor elements. Ingress Protection (IP) validation confirms defense for the front IP65 and back (IP67) of the display, ensuring continuous operation regardless of the environment.
Product Parameters
| Item | Parameters |
|---|---|
| Pixel pitch | 8mm |
| LED Type | SMD2727 / DIP570 1R1G1B |
| LED Module Size | 320x160mm |
| LED Module Resolution | 40x20dots |
| LED Cabinet Size | 2240x1280x120mm |
| Cabinet Resolution | 280x160dots |
| Screen Pixel | 15625dots |
| Signal Processing | 12 - 16 bit |
| Grey Level | 4096 - 65536 |
| Refresh Rate | > 3840Hz |
| Scan Mode | 1/8 |
| Brightness | >5,500 nits |
| Viewing Distance | > 8m |
| Viewing Angle | 140-degree H / 120-degree V |
| Input Voltage | 110-240V/50-60Hz |
| Max Consumption | 210W/SQ.M |
| Ave Consumption | 70W/SQ.M |
| Working Temperature | -20 degree to 45 degree |
| Storage Temperature | -40 degree to 60 degree |
| IP Rate | IP65 |
| Working Humidity | 10% - 60% |
| Storage Humidity | 10% - 90% |
| Lifespan | 100,000 hours |
| Service Type | Front & Rear Service |
| LED Lamp | Nationalstar |
| IC | ICN2153 |
| Control Card | Nova / Colorlight |
| Operation Approach | Windows |
| Trailer Dimension | 2832x1800x2074mm |
| Weight | 629KGS |
| Max Speed | 120KM/H |
| Rotating Range | 1-330 degrees |
| Lifting Range | 1000mm |
| Solar Panel Dimension | 2000x1000 |
| Input Voltage | 9-36V |
| Output Voltage | 24V |
| Rated Charging Power | 780W/24V |
| Battery Dimension | 520x210x200mm |
| Battery | 7.2KWH 12V 150A |
| Max Power | 1170W/24V |
