TV Curve LED Display

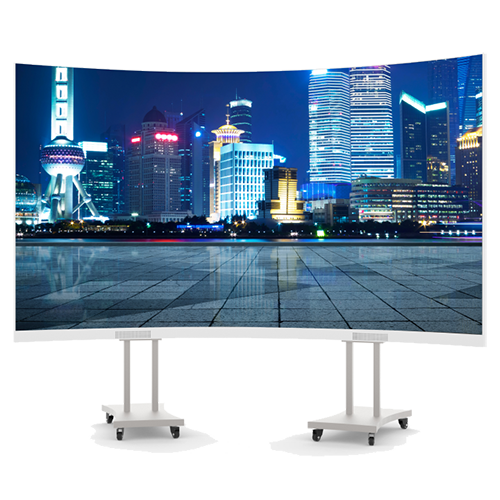

Indoor Full Colour P1.25 TV Curve LED Display

Product introduction |

This is traditional design of indoor LED display module. It has consistently bright and uniform picture quality, and it is reliable indoor LED signage with ongoing performance. This is dramatically cost-efficient design with convenient installation and maintenance.

Cabinet Material:Die-casting Al-cabinet & Single Side Design

Application:The traditional indoor LED screen is a state-of-the-art LED signage that complements any business with vibrant content presentation, along with an enhanced, indoor-friendly design that saves cost and time during installation and operation. It is the ideal display to deliver captivating and meaningful content in any indoor environment.

TV Curve 0.jpg

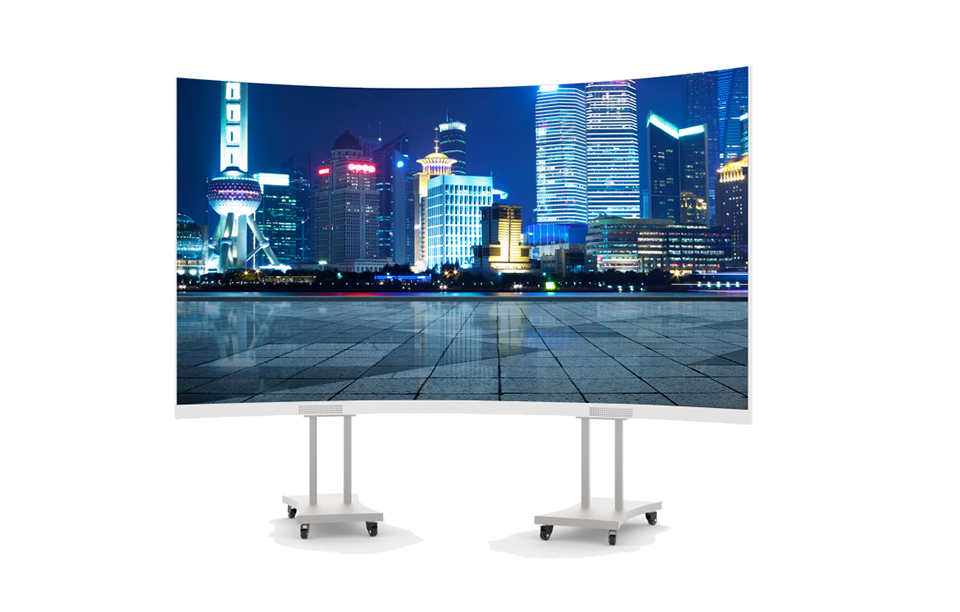

Durable, Reliable Indoor Alternative

It is subject to environmental tests including exposure to any temperatures, a weather-enacting salt corrosion chamber and package vibration and drop testing. The display also has corrosion-proof painting and anti-UV, deformation-proof housing that extends its shelf life.

TV Curve 1.jpg

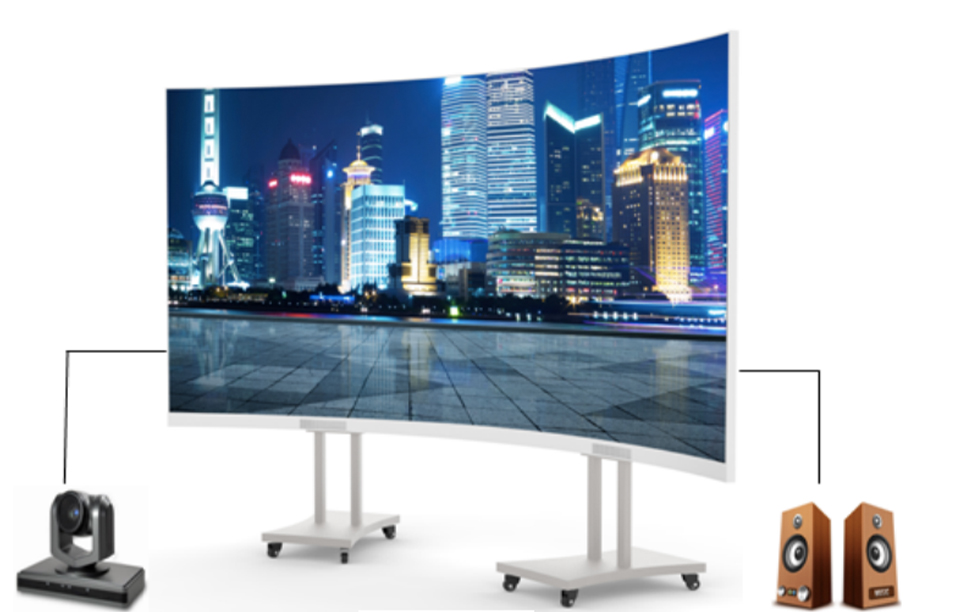

HD Meeting Room

It undergoes strict testing to ensure ongoing performance. It supports all fine pitch of LED display screens.

TV Curve 2.jpg

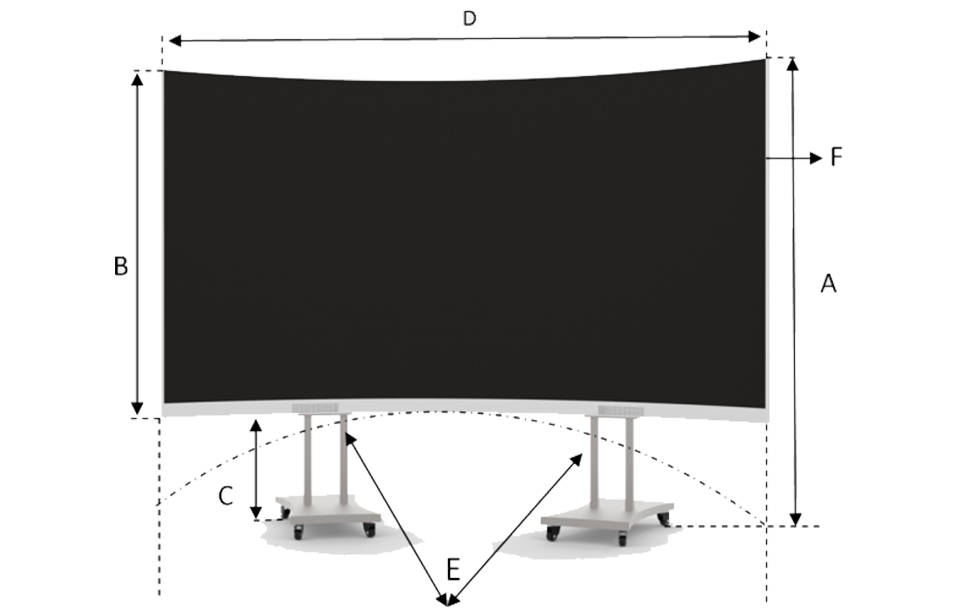

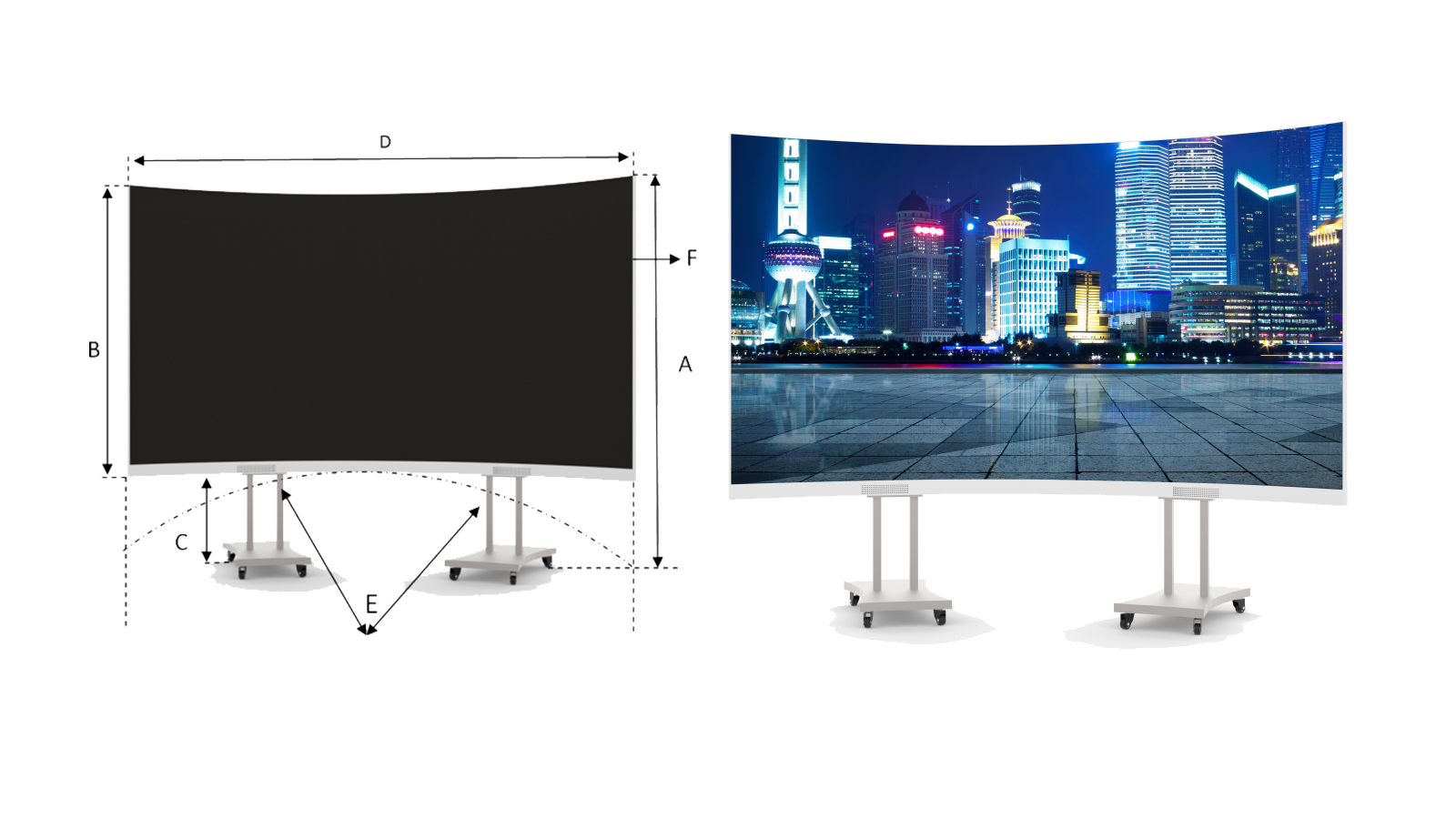

Variable Dimension

It can be made to 135'' by customised dimension with Android system.

TV Curve 3.jpg

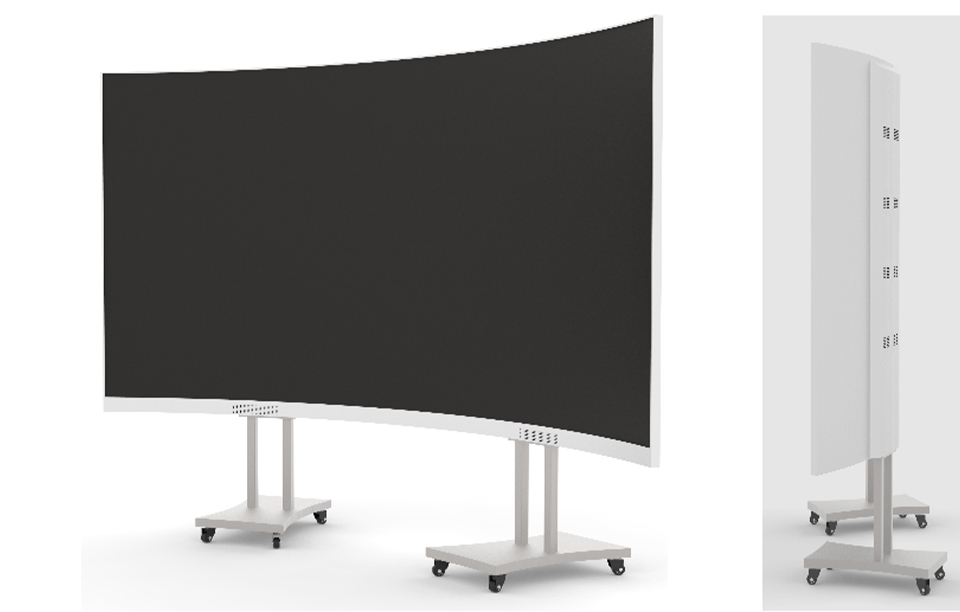

SMD1010 Black Lamp

Its resolution supports to 4K/8K and module size is 200x150mm. Resolution is 1920x1056 dots.

Product Parameters

Pixel pitch1.25mm
LED TypeMiniLED 2R2G2B
LED Module Size300x168.75mm
LED Module Resolution240x135dots
Density per SQ.M640,000 dots/SQ.M
Signal Processing 12 - 16 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/60
Brightness> 500 nits
Viewing Distance> 1.25m
Contrast Ratio5000:1
Viewing Angle120 degree
Input Voltage
Max Consumption< 400 W/SQ.M
Ave Consumption100 W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
Input VoltageDC5V
IP RateIP35
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan > 100,000 hours
MTBF> 10,000 hours
Service TypeFront Service
LED Lamp
Control CardNova / Colorlight / LINSN / Huidu
