Facade LED Display

Customised Size

Product introduction |

Facade LED Display

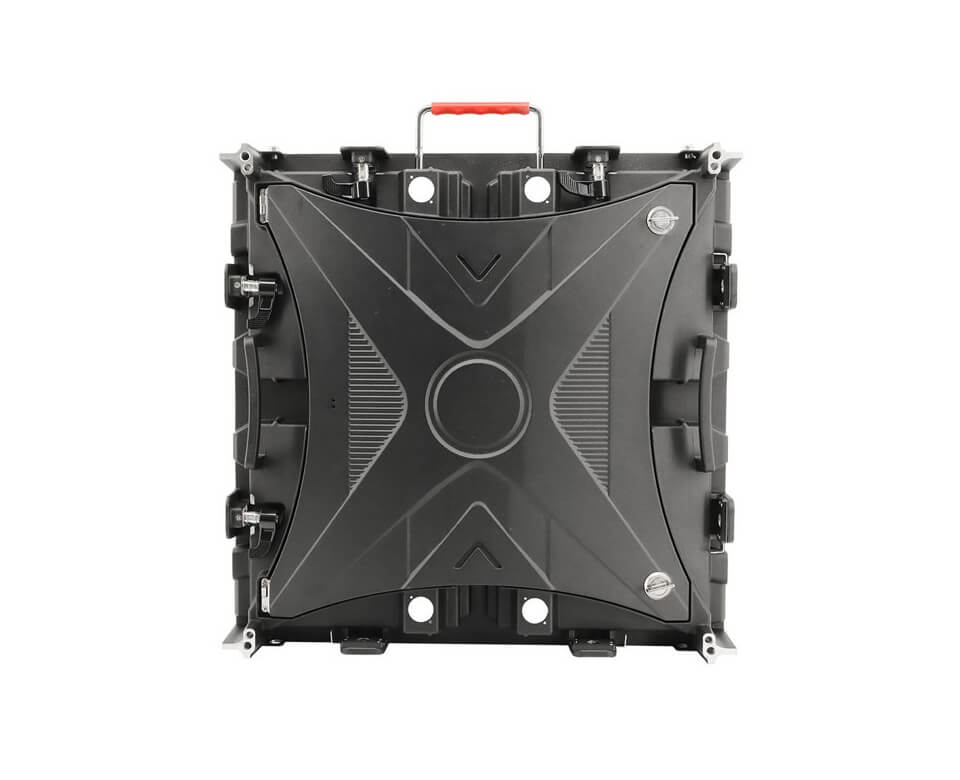

Cabinet Material:Cast Iron Cabinet

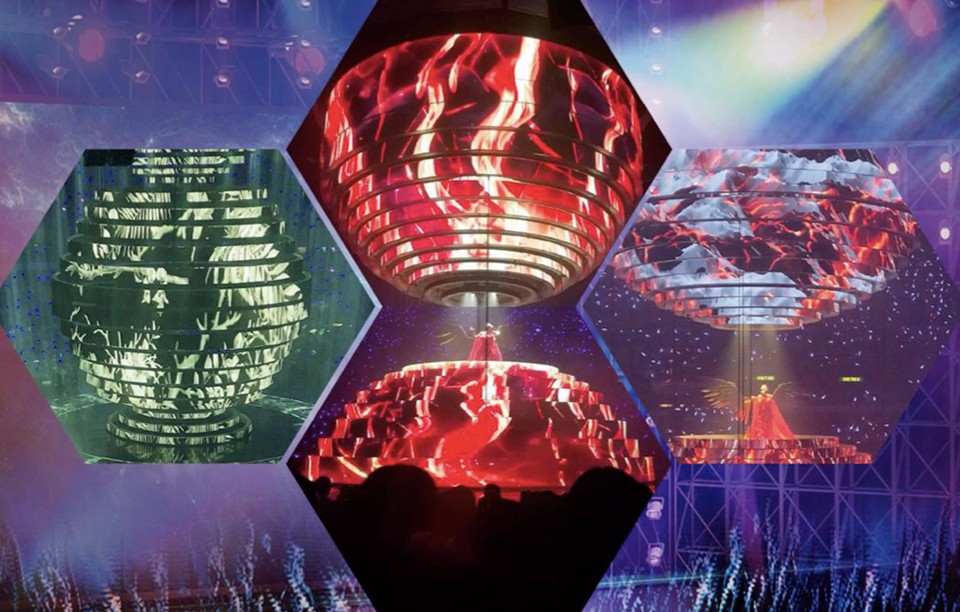

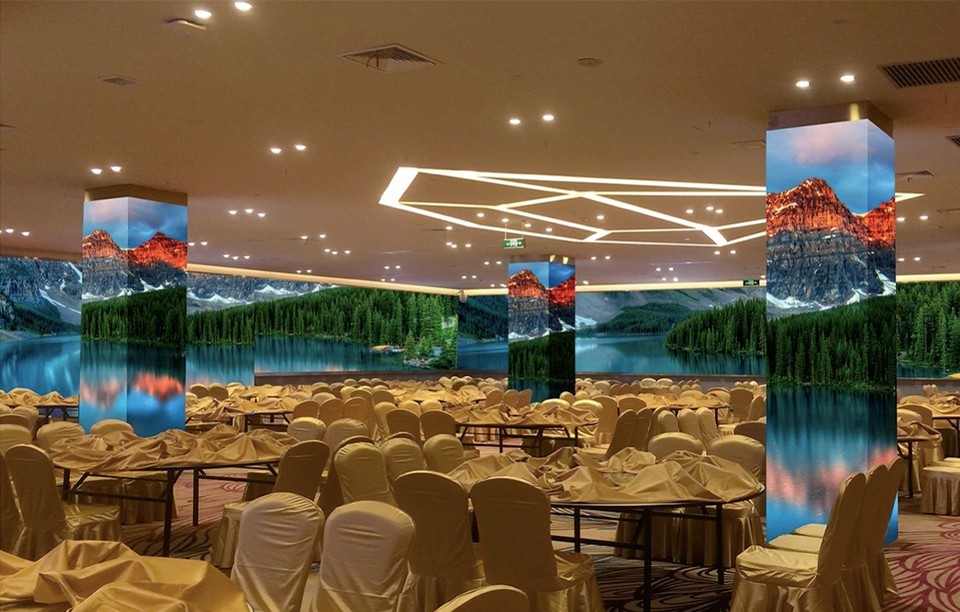

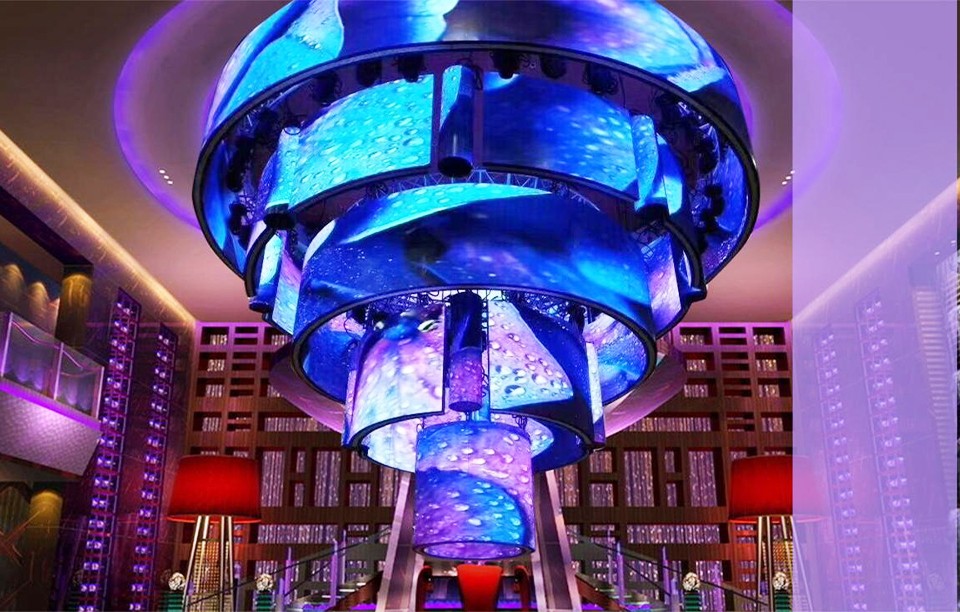

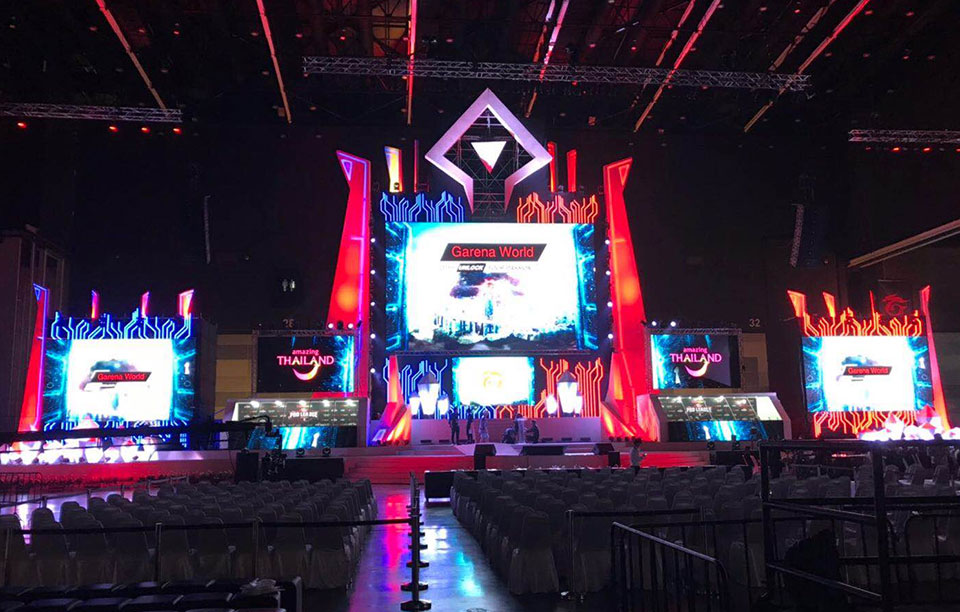

Application:Those LED products were widely used in both indoor and outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.

flexible 0 960x612.jpg

Fine Pitch Flexible

This flexible LED display supports P1.875mm, P2mm, P2.5mm, P3mm and P4mm with module size 240mm W x 120mm H.

flexible 1 960x612.jpg

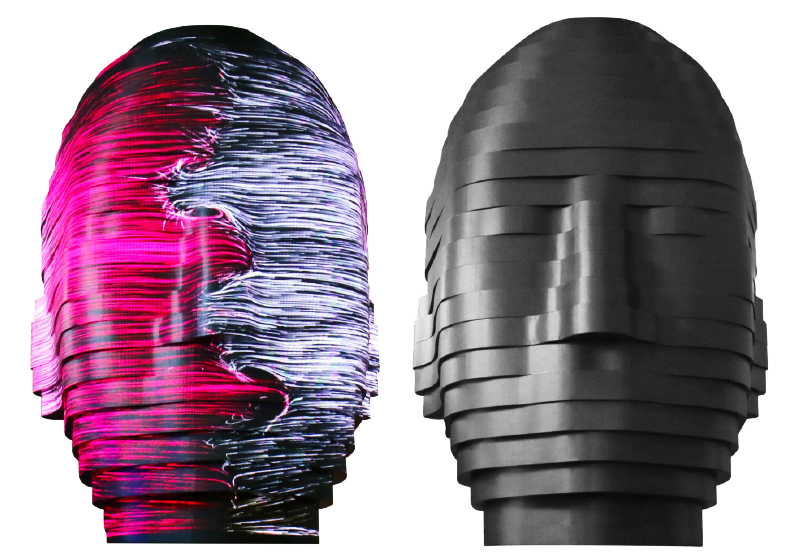

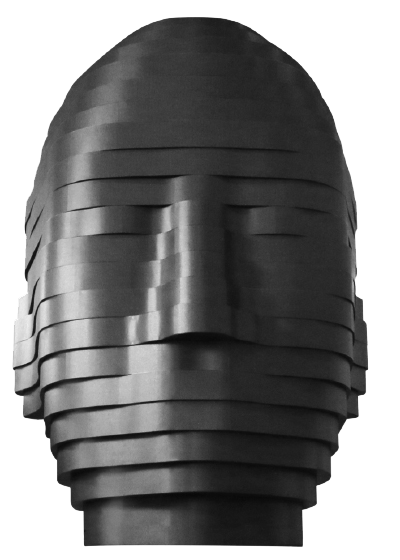

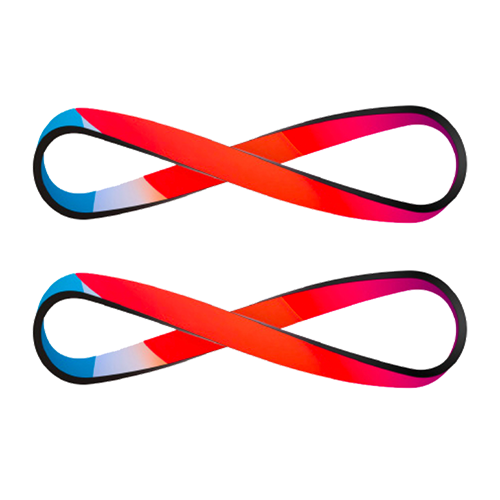

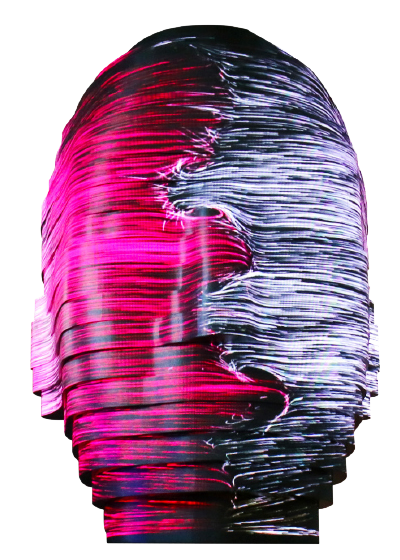

Good Flexibility

We have this flexible module with good quality and it can be curved freely.

flexible 2 960x612.jpg

Customised Design

It can adapt to more complex environments and better visual angles.

Product Parameters

ItemParameters
Pixel pitch2mm
LED LampSMD1515 1R1G1B
Module Size240x120x8.8mm
Module Weight0.17kgs
LED Density250,000 dots
Module Resolution120x60 dots
Scan Mode1/30 Scan
Driver ICICN2153
Voltage5V
Max Power Consumption14W
Max Current2.8A
Working Temperature-30° ~ +50°
Cabinet MaterialCast Iron
Cabinet ColourOptional
White Balance300 - 900mcd/sq.m
Viewing Angle160H/120V
Uniformity<1mm
Refresh Rate>3,840Hz
Grayscale16 bits
Lifespan100,000 hours
Input SignalRF,S-video,RGB,RGBHV,YUV,YC & Composition,etc
